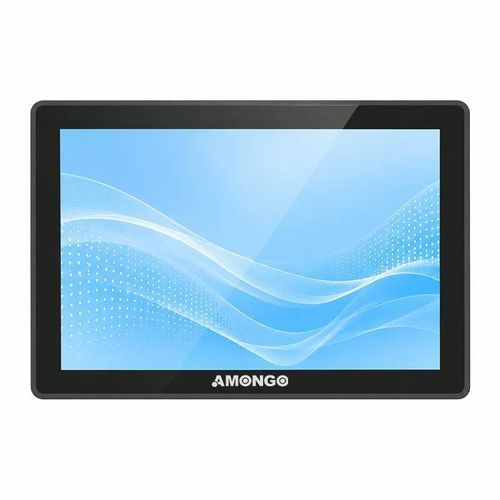

Capacitive touch screen AMG-15OPTE01T2
15.6"multi-touchprojected capacitive touchscreen

Capacitive touch screen - AMG-15OPTE01T2 - AMONGO Display Technology(ShenZhen)Co.,LTD - 15.6" / multi-touch / projected capacitive touchscreen
Capacitive touch screen - AMG-15OPTE01T2 - AMONGO Display Technology(ShenZhen)Co.,LTD - 15.6" / multi-touch / projected capacitive touchscreen
Capacitive touch screen - AMG-15OPTE01T2 - AMONGO Display Technology(ShenZhen)Co.,LTD - 15.6" / multi-touch / projected capacitive touchscreen - image - 2
Capacitive touch screen - AMG-15OPTE01T2 - AMONGO Display Technology(ShenZhen)Co.,LTD - 15.6" / multi-touch / projected capacitive touchscreen - image - 3
Capacitive touch screen - AMG-15OPTE01T2 - AMONGO Display Technology(ShenZhen)Co.,LTD - 15.6" / multi-touch / projected capacitive touchscreen - image - 4
Capacitive touch screen - AMG-15OPTE01T2 - AMONGO Display Technology(ShenZhen)Co.,LTD - 15.6" / multi-touch / projected capacitive touchscreen - image - 5
Add to favorites
Compare this product
Go to the AMONGO Display Technology(ShenZhen)Co.,LTD website for more information

Characteristics

Type
capacitive
Display size
15.6"
Display type
multi-touch, projected capacitive touchscreen, projective capacitive multi-touch screen
Applications
for industrial applications, industrial
Other characteristic
USB
Protection class
IP65

Description

Overview
This 15.6\" IP65, scratch-resistant PCAP touchscreen is designed for AFC systems and industrial automation environments, offering 10-point capacitive touch and full-surface hardness for demanding usage.

Key features
  • PCAP multi-touch screen (10 points)
  • IP65 rated (waterproof, dust-proof, vandal-resistant)
  • Full-surface scratch-resistant glass, Mohs 7
  • Wide operating range with stable performance from low temperature


Typical applications
  • AFC equipment (access control / fare collection)
  • Industrial automation consoles
  • Industrial HMI panels


Product details / specifications (table)
Screen Size: 15.6\"
Active Display Area (mm): 344.16 (H) x 193.59 (V)
Pixel Pitch (mm): 0.17925 (H) x 0.17925 (V)
Display Mode: Normally Black
Display Resolution (pixel): 1920 x 1080
Contrast Ratio: 1000:1
Display Color: 16.7M
Brightness: 250 nits
Backlight: LED
Viewing Angles (CR=10): 170° (H); 170° (V)
Response Time (Typ. Tr+Tf): 25 ms
Touch Screen: PCAP Touch (10 points)
Signal Connector: HDMI
Power Input: DC 12V
Touch Controller: USB
Operating Temperature: 0 to 50 °C (non-condensing)
Storage Temperature: -20 to 60 °C (non-condensing)
Relative Humidity: 5% RH to 90% RH

Technical specifications
  • Screen Size: 15.6\"
  • Active Display Area: 344.16 mm x 193.59 mm
  • Pixel Pitch: 0.17925 mm x 0.17925 mm
  • Display Mode: Normally Black
  • Resolution: 1920 x 1080 pixels
  • Contrast Ratio: 1000:1
  • Color Depth: 16.7 million colors
  • Brightness: 250 nits
  • Backlight Type: LED
  • Viewing Angles: 170° horizontal / 170° vertical (CR=10)
  • Response Time: 25 ms (typ. Tr+Tf)
  • Touch Technology: PCAP multi-touch (10 points)
  • Ingress Protection: IP65 (waterproof, dust-proof, vandal-resistant)
  • Surface Hardness: Mohs 7 (full-surface scratch-resistant)
  • Signal Connector: HDMI
  • Touch Controller Interface: USB
  • Power Input: DC 12V
  • Operating Temperature: 0 to 50 °C (non-condensing)
  • Storage Temperature: -20 to 60 °C (non-condensing)
  • Relative Humidity: 5% to 90% RH
