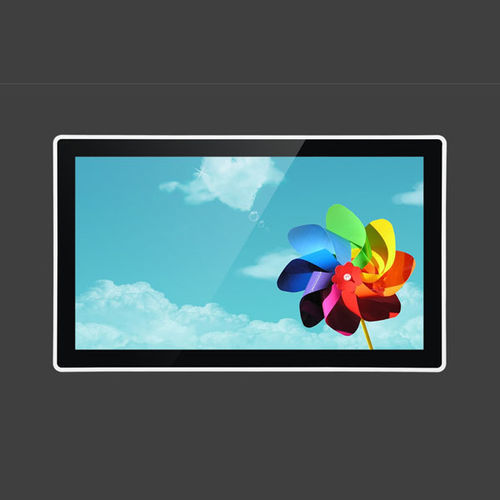

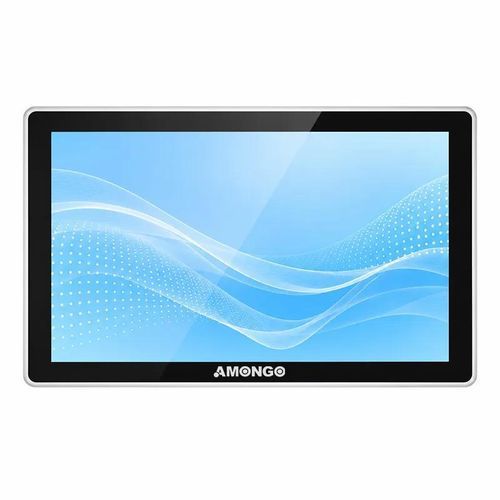

LCD monitor AMG-18IPSJ01T1

multitouch screenLED backlightwith PCT touch screen

Product description
The AMG-18IPSJ01T1 by Amongo is an 18.5" industrial capacitive PCAP touch monitor designed for AFC, kiosks and industrial automation. It features a full-flat front, IP65-rated front protection and a 10-point multi-touch interface with USB touch controller. Optional tempered cover glass and multiple brightness options are available.

Key features

• PCAP 10-point multi-touch (USB controller)
• Full-flat front surface, front-side IP65 protection
• Optional tempered cover glass for vandal resistance
• LED backlight with brightness options (250 / 350 / 450 nits)
• Wide viewing angles (170° H / 160° V) and 1366×768 resolution
• Signal inputs: VGA / DVI-D; Power: DC 12V
• Operating range: 0–50°C non-condensing; storage: -20–65°C
• OEM/ODM customization available

Typical applications

• AFC (automatic fare collection)
• Self-service kiosks and ticketing
• Industrial automation HMIs and control stations
• Info terminals and service points

Specification
Model: AMG-18IPSJ01T1
Screen size: 18.5"
Active display area (mm): 409.8 (H) x 230.4 (V)
Resolution: 1366 x 768
Pixel pitch (mm): 0.3 x 0.3
Contrast ratio: 1000:1
Display color: 16.7M
Brightness: 250 / 350 / 450 nits
Backlight: LED
Touch: PCAP 10-point
Signal connector: VGA / DVI-D
Power input: DC 12V
Touch controller: USB
Operating temp: 0–50°C (non-condensing)
Storage temp: -20–65°C (non-condensing)
Relative humidity: 5–90% RH

Technical specifications

• Active area: 409.8 x 230.4 mm
• Aspect ratio: 16:9
• Response time: 5 ms (typ.)
• Viewing angles: 170° (H) / 160° (V) (CR=10)
• Dimensions (VxHxT): 255 x 150 x 236 (stretch)
• Interface: USB (touch)
• Certifications: front-side IP65
