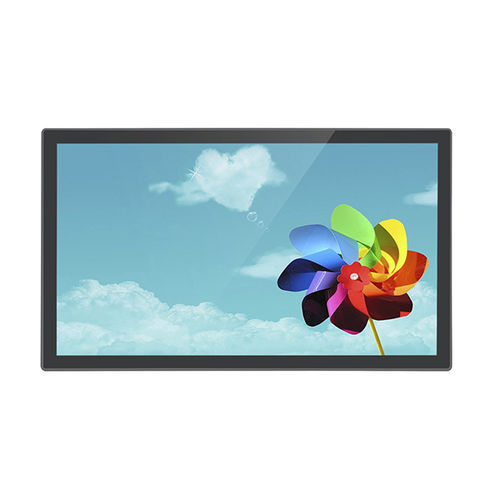

LCD monitor AMG-21OPGX01T1

multi-touch screenLED backlightwith PCT touch screen

Overview
The 21.5 in PCAP touch monitor AMG-21OPGX01T1 is an industrial-grade display engineered for continuous 24/7 operation and information-terminal applications. It combines a Full HD LCD panel, multi-touch capacitive input and an IP65-rated sealed side frame to ensure reliable performance in harsh or public environments.

Key features

• 21.5 in FHD (1920×1080) LCD with 3000:1 contrast and 178° viewing angles
• Projective capacitive touch, up to 10-point touch, with USB interface
• IP65 waterproof side frame for dust and vandal resistance
• Industrial-grade components and LED backlight for 24/7 operation
• Multiple video inputs: VGA / DVI-D / HDMI; audio output; DC12V power
• Options available: higher brightness, different input interfaces and customised integration

Technical specifications

• Model Name: AMG-21OPGX01T1
• Screen Size: 21.5”
• Active Display Area (mm): 476.064 (H) x 267.786 (V)
• Pixel Pitch (mm): 0.24795 (H) x 0.24795 (V)
• Display Resolution: 1920 x 1080
• Contrast Ratio: 3000:1
• Display Mode: Normally black
• Touch screen (optional): PCAP Touch (10 points)
• Brightness (cd/㎡): 250 nits
• Backlight: LED
• Viewing Angles (CR=10): 178° (H) x 178° (V)
• Response Time (Typ. Tr+Tf): 18 ms
• Dimensions (V x H x T, mm): 518.2 x 309.7 x 44.5
• Signal Connector: VGA / DVI-D / HDMI / Audio
• Touch Interface: USB
• Input Voltage: DC 12V
• Operating Systems Support: Windows 7 / 8 / 10 / Linux (optional)
• Operating Temperature: 0 ~ 50℃ (non-condensing)
• Storage Temperature: -20 ~ 60℃ (non-condensing)
• Relative Humidity: 5% RH ~ 90% RH
