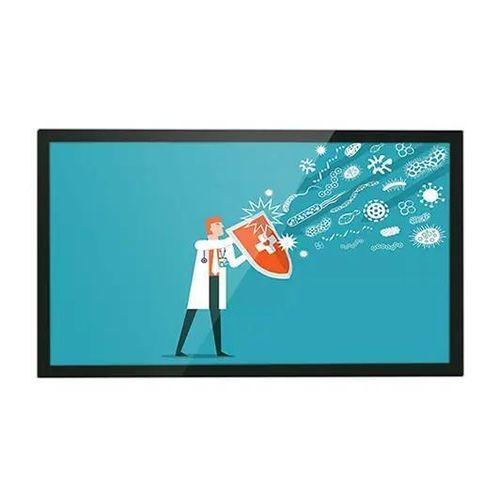

LCD monitor AMG-32OPGV01T1multitouch screenLED backlightprojected capacitive touchscreen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, multitouch screen, projected capacitive touchscreen, PCAP touchscreen, LED backlight
- Applications
- for industrial machines, for digital signage, for food applications, medical, for clean rooms
- Display size
- 31.5"
- Resolution
- 1920 x 1080
- Mounting
- for integration
- Other characteristics
- VGA, HDMI, USB, DVI port, Windows 7, vandal-proof, Linux, Windows 8, Windows 10, customizable, dust-proof, antibacterial, IP65
- Width
747 mm
(29.4094 in)- Height
441 mm
(17.3622 in)- Thickness
58 mm
(2.283 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Product Overview
The zero-bezel industrial permanent long-acting antibacterial PCAP touch LCD monitor AMG-32OPGV01T1 by Amongo provides a hygienic, dust-resistant touchscreen solution for continuous 24/7 operation in demanding environments.
Key features
Technical specifications
Model Name: AMG-32OPGV01T1
Screen Size: 31.5"
Active Display Area (mm): 698.4(H) x 392.85(V)
Pixel Pitch (mm): 0.12125(H) x 0.36375(V)
Display Resolution (pixel): 1920 x 1080
Contrast Ratio: 1200:1
Display Mode: Normally Black
Brightness: 400 nits (cd/m²)
Backlight: LED
Viewing Angles (CR=10): 178°(H); 178°(V)
Response Time (Typ. Tr+Tf): 8 ms
Touch Screen: PCAP Touch (10 points)
Permanent Antibacterial: Support (third-party report)
Light Sensor: Optional
Dimension (V x H x T): 747 x 441 x 58 (mm)
Signal Connector: VGA / DVI-D / HDMI / Audio
Power Input: AC 220V
Touch Controller: USB
Operating Systems Support: Windows 7 / 8 / 10 / Linux (optional)
Operating Temperature: 0 ~ 50℃ (non-condensation)
Storage Temperature: -20 ~ 60℃ (non-condensation)
Relative Humidity: 5 ~ 90% RH
Applications & compliance
The zero-bezel industrial permanent long-acting antibacterial PCAP touch LCD monitor AMG-32OPGV01T1 by Amongo provides a hygienic, dust-resistant touchscreen solution for continuous 24/7 operation in demanding environments.
Key features
- Permanent long-acting antibacterial surface — proven to effectively reduce up to 95% of certain bacteria/viruses (third-party test report available)
- IP65 waterproof molded frame for surface dust-proof and vandal-proof protection
- 10-point PCAP touch for multi-touch input and accurate touch response
- Branded LCD panel with 1920×1080 resolution, 400 cd/m² brightness and 178° viewing angles
- Industrial-grade components and durable mechanical design for reliable 24/7 operation
- Molded side frame integrated with touchscreen for simplified installation and maintenance
- Customization services available (touch controller, sensors, connectors, OS support)
Technical specifications
Model Name: AMG-32OPGV01T1
Screen Size: 31.5"
Active Display Area (mm): 698.4(H) x 392.85(V)
Pixel Pitch (mm): 0.12125(H) x 0.36375(V)
Display Resolution (pixel): 1920 x 1080
Contrast Ratio: 1200:1
Display Mode: Normally Black
Brightness: 400 nits (cd/m²)
Backlight: LED
Viewing Angles (CR=10): 178°(H); 178°(V)
Response Time (Typ. Tr+Tf): 8 ms
Touch Screen: PCAP Touch (10 points)
Permanent Antibacterial: Support (third-party report)
Light Sensor: Optional
Dimension (V x H x T): 747 x 441 x 58 (mm)
Signal Connector: VGA / DVI-D / HDMI / Audio
Power Input: AC 220V
Touch Controller: USB
Operating Systems Support: Windows 7 / 8 / 10 / Linux (optional)
Operating Temperature: 0 ~ 50℃ (non-condensation)
Storage Temperature: -20 ~ 60℃ (non-condensation)
Relative Humidity: 5 ~ 90% RH
Applications & compliance
- Suitable for healthcare terminals, public kiosks, industrial HMI, food processing interfaces and clean environments
- Third-party antibacterial test report and IP65 protection for hygiene-sensitive installations
- Customization and integration support for system integrators and OEM projects
