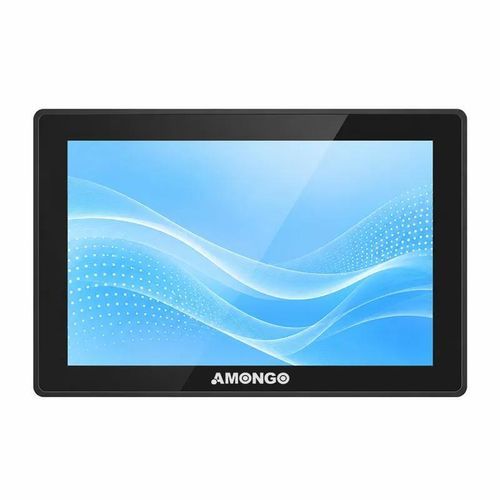

Multitouch screen monitor AMG-12OPZY01T9
LED backlightPCAP touchscreenPOS

Multitouch screen monitor - AMG-12OPZY01T9 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / PCAP touchscreen / POS
Multitouch screen monitor - AMG-12OPZY01T9 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / PCAP touchscreen / POS
Multitouch screen monitor - AMG-12OPZY01T9 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / PCAP touchscreen / POS - image - 2
Multitouch screen monitor - AMG-12OPZY01T9 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / PCAP touchscreen / POS - image - 3
Multitouch screen monitor - AMG-12OPZY01T9 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / PCAP touchscreen / POS - image - 4
Add to favorites
Compare this product
Go to the AMONGO Display Technology(ShenZhen)Co.,LTD website for more information

Characteristics

Technology
PCAP touchscreen, multitouch screen, LED backlight
Applications
for HMI interface, POS
Display size
12.1"
Resolution
800 x 600
Mounting
panel-mount
Format
pixel pitch
Other characteristics
HDMI, VGA, USB, DisplayPort, wide temperature range, IP65
Width

246 mm
(9.685 in)

Height

184.5 mm
(7.2638 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

Product overview
This 12.1-inch IP65-rated PCAP multi-touch touchscreen monitor (AMG-12OPZY01T9) features a convex full-flat fillet design and is engineered for non-cash equipment and kiosk applications requiring robust ingress protection and wide operating temperatures.

Key features
  • PCAP multi-touch screen (10 points)
  • Convex full-flat fillet industrial design
  • IP65 waterproof moulded frame
  • Reliable performance from low start-up temperatures
  • HD display interface via DisplayPort (DP)

Typical applications
  • Non-cash payment terminals
  • Self-service kiosks

Technical specifications
  • Screen size: 12.1"
  • Active display area (mm): 246.0 (H) x 184.5 (V)
  • Pixel pitch (mm): 0.3075 (H) x 0.3075 (V)
  • Display mode: Normally white
  • Display resolution (pixel): 800 x 600
  • Contrast ratio: 700:1
  • Display color: 16.2M
  • Brightness: 350 nits
  • Backlight: LED
  • Viewing angles (CR=10): 160° (H); 140° (V)
  • Response time (Typ. Tr+Tf): 35 ms
  • Touch screen: PCAP touch (10 points)
  • Signal connector: VGA / HDMI / DP / Audio
  • Power input: DC 12V
  • Touch controller: USB
  • Operating temperature: -20～70℃ (non-condensation)
  • Storage temperature: -30～80℃ (non-condensation)
  • Relative humidity: 5% RH ～ 90% RH
