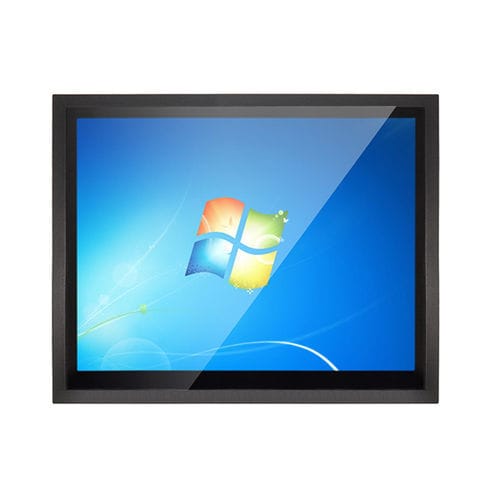

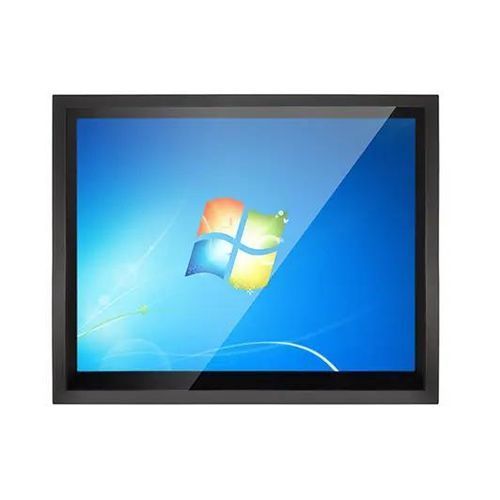

LCD monitor AMG-10IPYZ02T1
touch screenLED backlightPCAP touchscreen

LCD monitor - AMG-10IPYZ02T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - touch screen / LED backlight / PCAP touchscreen
LCD monitor - AMG-10IPYZ02T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - touch screen / LED backlight / PCAP touchscreen
LCD monitor - AMG-10IPYZ02T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - touch screen / LED backlight / PCAP touchscreen - image - 2
LCD monitor - AMG-10IPYZ02T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - touch screen / LED backlight / PCAP touchscreen - image - 3
LCD monitor - AMG-10IPYZ02T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - touch screen / LED backlight / PCAP touchscreen - image - 4
Add to favorites
Compare this product
Go to the AMONGO Display Technology(ShenZhen)Co.,LTD website for more information

Characteristics

Technology
LCD, touch screen, PCAP touchscreen, LED backlight
Applications
industrial, for industrial machines, for digital signage, for displays, for HMI interface, for vehicles, marine, POS, for IoT applications, for CNC machines
Display size
10.4"
Resolution
1024 x 768
Mounting
panel-mount
Other characteristics
VGA, USB, DVI port, wide viewing angle, customizable
Width

199.6 mm
(7.8583 in)

Height

248.8 mm
(9.7953 in)

Thickness

36.9 mm
(1.453 in)

Operating temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

Overview
The AMG-10IPYZ02T1 is a 10.4" industrial PCAP touch LCD monitor designed for continuous 24/7 operation in kiosks, ATMs, vending machines and industrial HMIs. It combines industrial-grade components and an IP-rated front to withstand harsh environments.

Key features
  • 10.4" PCAP touch panel with integrated molded side frame for simplified installation and maintenance
  • 1024×768 resolution, 350 nits brightness, LED backlight
  • Wide viewing angles: 150° (H) / 150° (V); response time: 16 ms
  • Signal inputs: VGA, DVI‑D, USB; Power: DC 12 V
  • Operating range: -20 to 70 °C; IP protection against dust and water
  • Customization options available for touch function and mounting


Technical specifications
  • Model: AMG-10IPYZ02T1
  • Screen size: 10.4"
  • Active display area: 211.2 × 158.4 mm
  • Resolution: 1024 × 768 pixels
  • Pixel pitch: 0.2055 × 0.2055 mm
  • Display mode: Normally White
  • Contrast ratio: 900:1
  • Colors: 262K / 16.7M
  • Brightness: 350 nits
  • Backlight: LED
  • Viewing angles: 150° (H) / 150° (V) (CR=10)
  • Response time: 16 ms (Typ. Tr + Tf)
  • Connectors: VGA, DVI‑D, USB
  • Power supply: DC 12 V
  • Dimensions (V×H×T): 248.8 × 199.6 × 36.9 mm
  • Operating temperature: -20 to 70 °C
  • Storage temperature: -30 to 80 °C
  • Relative humidity: 5% ~ 90% RH
