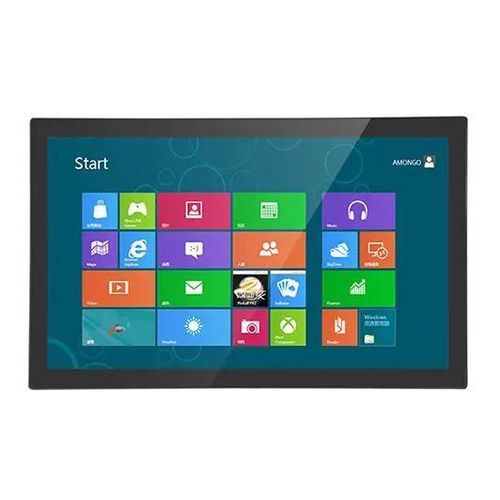

LCD monitor AMG-18IPAM01T1multitouch screenLED backlightprojected capacitive touchscreen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, multitouch screen, projected capacitive touchscreen, PCAP touchscreen, LED backlight
- Applications
- for industrial machines, for HMI interface, POS
- Display size
- 18.5"
- Resolution
- 1920 x 1080
- Mounting
- VESA mounting, embedded
- Other characteristics
- HDMI, DVI port, VGA-DVI port, wide viewing angle, compact, IP65, waterproof, dust-proof
- Width
449.1 mm
(17.6811 in)- Height
274.2 mm
(10.7953 in)- Thickness
47 mm
(1.85 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Product Overview
The zero-bezel Industrial PCAP Multi-Touch LCD Monitor AMG-18IPAM01T1 by Amongo is designed for continuous industrial use. It integrates an 18.5" FHD panel with PCAP 10-point touch, an IP65 front panel and industrial-grade components suitable for kiosks, HMIs, POS and machinery interfaces.
Key features
Specifications
The zero-bezel Industrial PCAP Multi-Touch LCD Monitor AMG-18IPAM01T1 by Amongo is designed for continuous industrial use. It integrates an 18.5" FHD panel with PCAP 10-point touch, an IP65 front panel and industrial-grade components suitable for kiosks, HMIs, POS and machinery interfaces.
Key features
- 18.5" Full HD (1920x1080) LCD with LED backlight
- Projected capacitive (PCAP) multi-touch, 10-point touch support (USB touch controller)
- Zero-bezel design with front surface protection rated IP65 (waterproof, dust-proof)
- Surface hardness: Mohs 7; optional tempered glass
- Wide operating temperature range: -20~70℃ (non-condensing)
- Multiple video inputs: VGA / DVI-D / HDMI; audio support
- Compact industrial dimensions and support for embedded or VESA installation
Specifications
- Model Name: AMG-18IPAM01T1
- Screen Size: 18.5"
- Active Display Area (mm): 408.96(H) x 230.04(V)
- Pixel Pitch (mm): 0.213(H) x 0.213(V)
- Display Mode: Normally black
- Resolution: 1920 x 1080
- Contrast Ratio: 1000:1
- Display Color: 16.7M
- Brightness: 350 nits
- Backlight: LED
- Viewing Angles (CR=10): 178°(H) / 178°(V)
- Response Time (Typ. Tr+Tf): 20 ms
- Touch Screen: PCAP Touch (10 points)
- Light Sensor: Optional
- Tempered glass: Optional
- Signal Connector: VGA / DVI-D / HDMI / Audio
- Power Input: DC 12V
- Touch Controller: USB
- Dimension (W x H x T) mm: 449.1 x 274.2 x 47
- Operating Temperature: -20~70℃ (non-condensation)
- Storage Temperature: -20~70℃ (non-condensation)
- Relative Humidity: 5~90% RH
