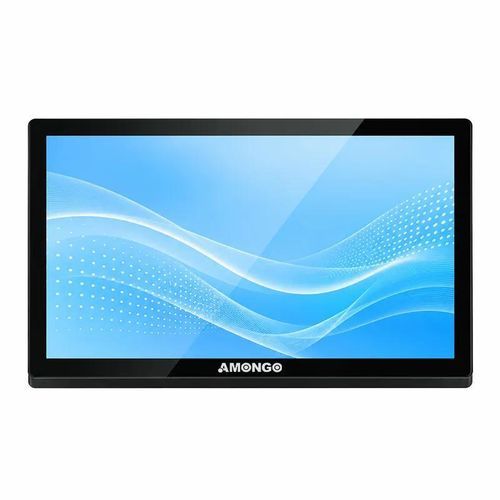

LCD monitor AMG-14IPGD01T1

multitouch screenLEDwith PCT touch screen

Overview
The AMG-14IPGD01T1 is a 14-inch frameless industrial PCAP touch LCD monitor designed for VTM, ATM and kiosk deployments. It features a true-flat IP65 front and components selected for reliable continuous operation.

Key features

• PCAP multi-touch (10 points) with USB touch controller
• Convex full fillet true-flat front design
• Plastic side frame with rugged steel housing
• Optional high-brightness panel and ambient light sensor
• High-reliability testing for stable 24/7 performance

Typical applications

• VTM and ATM terminals
• Kiosks and self-service machines
• Non-cash equipment and POS solutions
• Industrial HMIs and control panels

Technical specifications

• Model: AMG-14IPGD01T1
• Screen size: 14"
• Active display area (mm): 309.312 (H) x 173.988 (V)
• Pixel pitch (mm): 0.264 x 0.264
• Display mode: Normally white
• Resolution: 1920 x 1080
• Contrast ratio: 800:1
• Display colors: 16.2M
• Brightness: 250 nits
• Backlight: LED
• Viewing angles (CR=10): 170° H / 170° V
• Response time (Typ. Tr+Tf): 30 ms
• Touch: PCAP (10-point), touch controller via USB
• Signal connectors: VGA, DVI-D (USB for touch)
• Power input: DC 12V
• Dimensions (W x H x D): 339 x 212 x 33 mm
• Operating temperature: 0 ~ 50 °C
• Storage temperature: -20 ~ 60 °C
• Relative humidity: 5% ~ 90% RH
