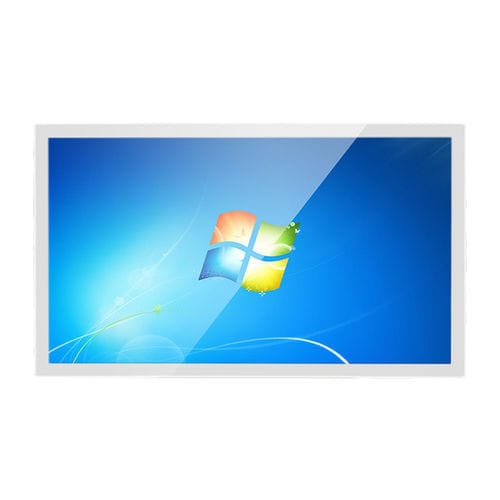

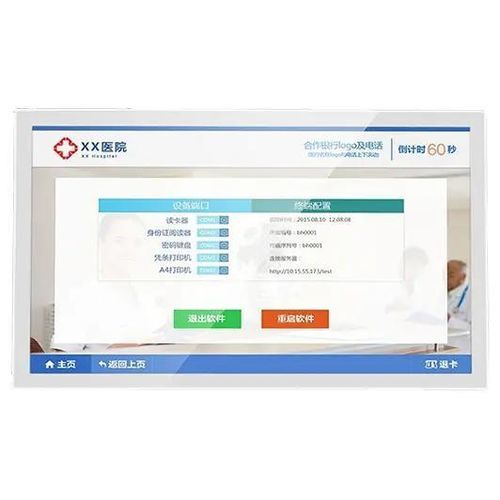

LCD monitor AMG-21OPGD01T5

multitouch screenLED backlightPCAP capacitive touch screen

Product overview
The 21.5-inch PCAP touch LCD monitor AMG-21OPGD01T5 is developed for industrial HMI, kiosks, ATMs and self-service terminals. It combines a branded LCD panel with LED backlight and PCAP 10-point capacitive multi-touch. Available brightness options and multiple touchscreen variants allow adaptation to different operating environments. The front features a full-flat bezel with water-, dust- and vandal-resistant design. Supports embedded or VESA mounting and DC 12V power input for integration into kiosk and industrial installations.

Applications

• ATM / VTM
• Self-service terminals
• Kiosks and digital signage
• Industrial HMI and control panels

Display & Touch Features
Projected capacitive (PCAP) 10-point multi-touch with precise multi-touch tracking. Full HD 1920 x 1080 resolution, wide 178° viewing angles and LED backlight. Brightness configurable: 250 / 350 / 450 nits. Available options for different touch technologies depending on application requirements. Signal inputs include VGA, DVI-D, HDMI and audio.

Specifications

• Model Name: AMG-21OPGD01T5
• Screen Size: 21.5-inch
• Active Display Area: 476.064 x 267.786 mm
• Pixel Pitch: 0.24795 x 0.24795 mm
• Display Mode: Normally black
• Resolution: 1920 x 1080
• Contrast Ratio: 3000:1
• Display Color: 16.7M
• Brightness: 250 / 350 / 450 nits
• Backlight: LED
• Viewing Angles: 178° horizontal / 178° vertical (CR=10)
• Response Time: 18 ms (typ. Tr+Tf)
• Signal Connectors: VGA, DVI-D, HDMI, Audio
• Power: DC 12V
• Dimensions (WxHxD): 511.9 x 303.4 x 43 mm
• Operating Temperature: 0 ~ 50 °C
• Storage Temperature: -20 ~ 60 °C
• Relative Humidity: 5% ~ 90% RH
• Touch Technology: PCAP 10-point capacitive touch
