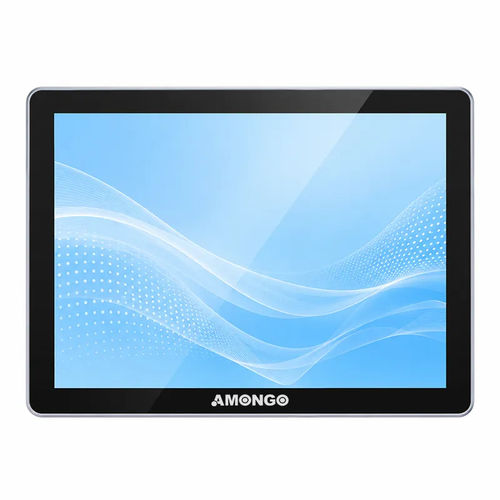

LCD monitor AMG-15OPDX70T1multitouch screenLED backlightPCAP touchscreen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, multitouch screen, PCAP touchscreen, LED backlight
- Applications
- for industrial machines, for digital signage, for HMI interface
- Display size
- 15"
- Resolution
- 1024 x 768
- Mounting
- built-in, for integration
- Other characteristics
- USB, VGA, DVI port, wide viewing angle, customizable, frameless
- Width
349.8 mm
(13.7717 in)- Height
273.8 mm
(10.7795 in)- Thickness
41.9 mm
(1.65 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Product overview
The AMG-15OPDX70T1 is a 15" bezel-less PCAP touch LCD monitor manufactured by Amongo for industrial and self-service kiosk installations. It features a full-flat front, 10-point PCAP touch, and industrial-grade components suitable for continuous operation. Side aluminium frame options: silver or black. Customization services available.
Key features
Typical applications
Specifications
Technical specifications
The AMG-15OPDX70T1 is a 15" bezel-less PCAP touch LCD monitor manufactured by Amongo for industrial and self-service kiosk installations. It features a full-flat front, 10-point PCAP touch, and industrial-grade components suitable for continuous operation. Side aluminium frame options: silver or black. Customization services available.
Key features
- Full-flat (bezel-less) front panel
- 10-point PCAP multi-touch
- Industrial-grade components for 24/7 operation
- LED backlight with brightness options (250 / 350 / 450 nits)
- Wide viewing angles and branded LCD panel
- Signal inputs: VGA, DVI-D, USB
Typical applications
- Industrial HMI
- Self-service kiosks
- Equipment operation consoles
- Automation control systems
- POI / information displays
Specifications
- Model: AMG-15OPDX70T1
- Screen size: 15"
- Active display area (mm): 304.128 (H) x 228.096 (V)
- Pixel pitch (mm): 0.297 (H) x 0.297 (V)
- Display mode: Normally white
- Resolution: 1024 x 768 pixels
- Contrast ratio: 700:1
- Display colors: 16.7M
- Brightness: 250 / 350 / 450 nits (options)
- Backlight: LED
- Viewing angles (CR=10): 160° (H) / 140° (V)
- Response time (Typ. Tr+Tf): 8 ms
- Touch screen: PCAP touch, 10 points
- Signal connector: VGA / DVI-D / USB
- Power input: DC 12V
- Dimensions (W x H x D): 349.8 x 273.8 x 41.9 mm
- Operating temperature: -20 ~ 70 °C
- Storage temperature: -30 ~ 80 °C
- Relative humidity: 5% ~ 90% RH
Technical specifications
- Model name: AMG-15OPDX70T1
- Display: 15" PCAP (10-point)
- Resolution: 1024 x 768
- Brightness options: 250 / 350 / 450 cd/m²
- Contrast: 700:1
- Backlight: LED
- Interfaces: VGA, DVI-D, USB
- Power: DC 12V
- Operating temp: -20 ~ 70 °C; Storage: -30 ~ 80 °C
