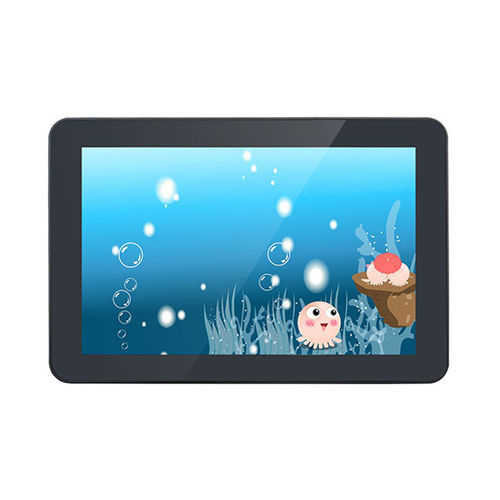

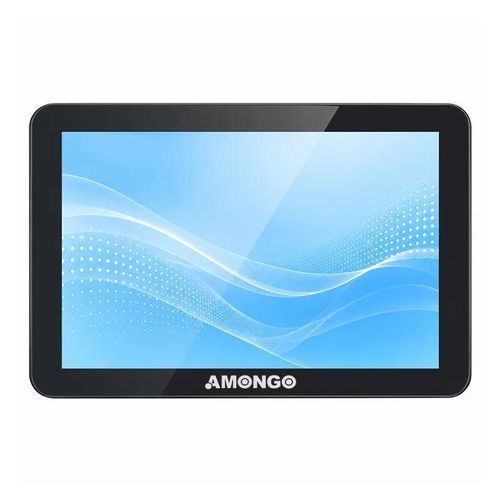

LCD monitor AMG-10IPPE01T2

multitouch screenLED backlightwith PCT touch screen

Description
This 10.1" PCAP multi-touch LCD monitor AMG-10IPPE01T2 is designed for AFC systems, self-service kiosks and industrial HMI applications. It features a full-flat front surface, 10-point projected capacitive touch and hardened cover glass (MoHS 7), with a wide operating temperature range and proven reliability testing.

Key features

• PCAP multi-touch, 10 touch points
• Full flat surface design
• Surface hardness: MoHS 7
• Wide operating temperature: -20~60℃
• High reliability testing and stable performance

Typical applications

• AFC (automatic fare collection)
• Ticketing and non-cash payment terminals
• Self-service kiosks and information terminals
• Industrial control panels and HMIs

Specification
Screen size: 10.1"
Active display area (mm): 216.96(H) x 135.6(V)
Pixel pitch (mm): 0.1695(H) x 0.1695(V)
Display mode: Normally Black
Resolution (pixels): 1280 x 800
Contrast ratio: 1300:1
Display color: 16.7M
Brightness: 300 nits
Backlight: LED
Viewing angles (CR=10): 160° (H); 160° (V)
Response time (Tr+Tf): 25 ms
Touch: PCAP touch, 10 points
Signal connector: HDMI
Power input: DC 12V
Touch controller: USB
Operating temperature: -20~60℃ (non-condensing)
Storage temperature: -30~70℃ (non-condensing)
Relative humidity: 5%~90% RH

Technical specifications

• Screen size: 10.1"
• Active area: 216.96 x 135.6 mm
• Resolution: 1280 x 800
• Brightness: 300 nits
• Touch: PCAP 10-point
• Connectors: HDMI, USB (touch)
• Power: DC 12V
• Operating temp: -20~60℃
• Storage temp: -30~70℃
• Humidity: 5%~90% RH
