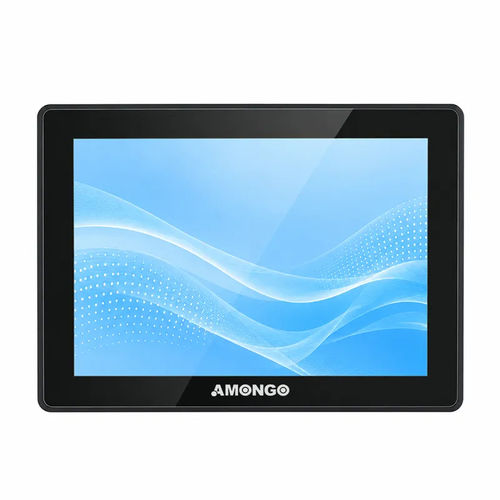

LCD monitor AMG-12OPYH01T1

multitouch screenLED backlightwith PCT touch screen

Product overview
AMG-12OPYH01T1 is a 12.1-inch zero-bezel industrial PCAP touchscreen LCD manufactured by Amongo, designed for kiosks and non-cash equipment with an IP65-protected front and a convex full-fillet bezel.

Key features

• PCAP 10-point multi-touch
• Convex full fillet design with plastic molded frame
• Front-side IP65: waterproof, dustproof and vandal-resistant
• Wide operating temperature range: -20 to 70 °C (non-condensing)
• LED backlight, 350 nits brightness

Typical applications

• Self-service kiosks
• Non-cash payment terminals
• Industrial HMI and control panels

Specification
Screen Size: 12.1-inch
Active Display Area (mm): 245.76 (H) x 184.32 (V)
Pixel Pitch (mm): 0.24 (H) x 0.24 (V)
Display Mode: Normally white
Display Resolution (pixel): 800 x 600 (1024 x 768 optional)
Contrast Ratio: 700:1
Display Color: 16.7M
Brightness: 350 nits
Backlight: LED
Viewing Angles (CR=10): 160° (H) / 140° (V)
Response Time (Typ. Tr+Tf): 8 ms
Touch Screen: PCAP touch, 10 points
Signal Connector: VGA, DVI-D, USB (touch controller)
Power Input: DC 12V
Operating Temperature: -20 to 70 °C (non-condensing)
Storage Temperature: -30 to 80 °C (non-condensing)
Relative Humidity: 5% to 90% RH
Dimensions (W x H x D): 290.4 x 228.9 x 40 mm

Technical specifications

• Model: AMG-12OPYH01T1
• Resolution: 800 x 600 (1024 x 768 optional)
• Colors: 16.7M
• Contrast: 700:1
• Brightness: 350 nits
• Backlight type: LED
• Touch interface: USB
• Environmental: Operating -20 to 70 °C, Storage -30 to 80 °C, Humidity 5–90% RH
