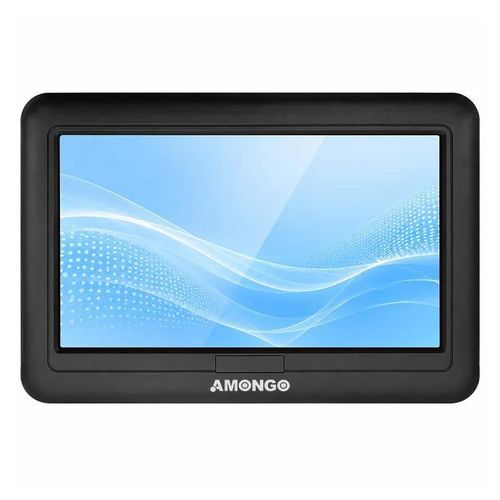

LCD monitor AMG-07IPAM01T1
multitouch screenLED backlightwith PCT touch screen

LCD monitor - AMG-07IPAM01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen
LCD monitor - AMG-07IPAM01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen
LCD monitor - AMG-07IPAM01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 2
LCD monitor - AMG-07IPAM01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 3
LCD monitor - AMG-07IPAM01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 4
LCD monitor - AMG-07IPAM01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 5
Add to favorites
Compare this product
Go to the AMONGO Display Technology(ShenZhen)Co.,LTD website for more information

Characteristics

Technology
LCD, multitouch screen, PCAP touchscreen, capacitive touch screen, with PCT touch screen, LED backlight
Applications
for digital signage, for HMI interface
Display size
7"
Resolution
1024 x 600
Mounting
panel-mount
Other characteristics
HDMI, VGA, USB, high-brightness, wide viewing angle, compact
Width

154.21 mm
(6.0713 in)

Height

85.92 mm
(3.3827 in)

Operating temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

Product overview
This 7-inch industrial PCAP touch display AMG-07IPAM01T1 is designed for automation and self-service applications. It provides 10-point multi-touch, 1024x600 resolution and 500 nits brightness in a wide operating temperature range.

Key features
  • PCAP multi-touch (10 points) with USB controller
  • High brightness: 500 nits
  • Wide operating temperature: -20~70°C (non-condensing)
  • Signal inputs: VGA and HDMI
  • Compact 7" size with active area 154.21 x 85.92 mm


Typical applications
  • Automatic fare collection (AFC)
  • Industrial automation HMI
  • Self-service kiosks and gates


Specification
  • Screen Size: 07"
  • Active Display Area (mm): 154.21(H) x 85.92(V)
  • Pixel Pitch (mm): 0.1506(H) x 0.1432(V)
  • Display Mode: Normally White
  • Display Resolution: 1024 x 600
  • Contrast Ratio: 800:1
  • Display Color: 16.7M
  • Brightness: 500 nits
  • Backlight: LED
  • Viewing Angles (CR=10): 150° (H); 145° (V)
  • Response Time (Typ. Tr+Tf): 25 ms
  • Touch Screen: PCAP Touch (10 points)
  • Signal Connector: VGA / HDMI
  • Power Input: DC 12V
  • Touch Controller: USB
  • Operating Temperature: -20~70°C (non-condensing)
  • Storage Temperature: -30~80°C (non-condensing)
  • Relative Humidity: 5%~90% RH
