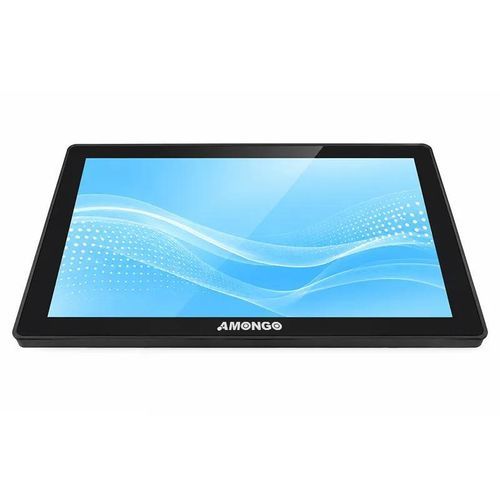

LCD monitor AMG-11IPAM01T1
multitouch screenLED backlightwith PCT touch screen

LCD monitor - AMG-11IPAM01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen
LCD monitor - AMG-11IPAM01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen
LCD monitor - AMG-11IPAM01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 2
LCD monitor - AMG-11IPAM01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 3
LCD monitor - AMG-11IPAM01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 4
LCD monitor - AMG-11IPAM01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / with PCT touch screen - image - 5
Add to favorites
Compare this product
Go to the AMONGO Display Technology(ShenZhen)Co.,LTD website for more information

Characteristics

Technology
LCD, multitouch screen, PCAP touchscreen, capacitive touch screen, with PCT touch screen, LED backlight
Applications
industrial, for industrial machines, for digital signage, for displays, for HMI interface, for vehicles, marine, POS, for IoT applications
Display size
11.6"
Resolution
1920 x 1080
Mounting
panel-mount
Other characteristics
HDMI, USB, high-brightness, wide viewing angle, embedded
Width

256.32 mm
(10.0913 in)

Height

144.18 mm
(5.6764 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

Product Overview
This 11.6" scratch‑resistant full‑flat PCAP touchscreen offers an ultra‑wide viewing angle and FHD resolution for industrial kiosk and embedded display applications, with HDMI input and USB touch controller for easy integration.

Key features
  • PCAP multi-touch (10 points)
  • Full‑flat surface design with surface hardness MoHs 7
  • 1920 x 1080 (FHD) resolution
  • Brightness 600 nits, wide viewing angles (176°/176°)
  • Wide operating temperature range (−20 ~ 70 °C)
  • HDMI signal input, USB touch controller, DC 12V power

Typical applications
  • AFC systems
  • Non-cash/payment terminals
  • Kiosks and interactive displays

Specifications (table)
Screen Size: 11.6"
Active Display Area(mm): 256.32(H)x144.18(V)
Pixel Pitch(mm): 0.1335(H)x0.1335(V)
Display Mode: Normally Black
Display Resolution(pixel): 1920x1080
Contrast Ratio: 900:1
Display Color: 16.7M
Brightness: 600nits
Backlight: LED
Viewing Angles(CR=10): 176(H);176(V)
Response Time(Typ.Tr+Tf): 25ms
Touch Screen: PCAP Touch(10 points)
Signal Connector: HDMI
Power Input: DC 12V
Touch Controller: USB
Operating Temperature: -20~70℃ (non-condensation)
Storage Temperature: -30~80℃ (non-condensation)
Relative Humidity: 5(%RH)~90(%RH)

Technical specifications
  • Screen Size: 11.6"
  • Active Display Area: 256.32(H)x144.18(V) mm
  • Resolution: 1920 x 1080
  • Pixel Pitch: 0.1335(H) x 0.1335(V) mm
  • Brightness: 600 nits
  • Contrast Ratio: 900:1
  • Display Color: 16.7M
  • Backlight: LED
  • Viewing Angles: 176° (H) / 176° (V)
  • Response Time: 25 ms (Typ. Tr+Tf)
  • Touch Type: PCAP Touch (10 points)
  • Surface Hardness: MoHs 7
  • Signal Connector: HDMI
  • Touch Controller: USB
  • Power Input: DC 12V
  • Operating Temperature: -20 ~ 70 °C (non-condensation)
  • Storage Temperature: -30 ~ 80 °C (non-condensation)
  • Relative Humidity: 5% ~ 90% RH
