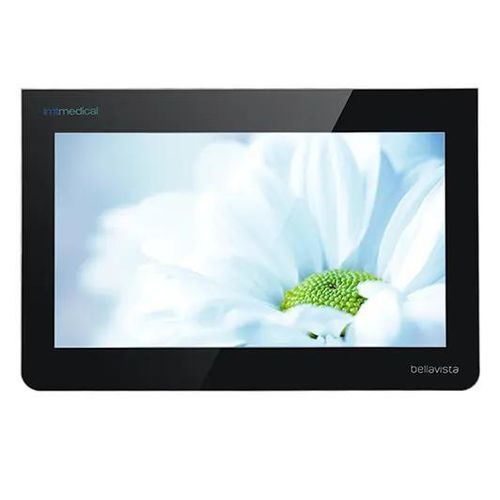

LCD monitor AMG-13OPUS01T1multitouch screenLED backlightwith PCT touch screen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, multitouch screen, PCAP touchscreen, capacitive touch screen, with PCT touch screen, LED backlight
- Applications
- industrial, for industrial machines, for digital signage, for displays, for HMI interface, for vehicles, POS, for CNC machines, for food applications, for the automotive industry
- Display size
- 13.3"
- Resolution
- 1920 x 1080
- Mounting
- panel-mount
- Other characteristics
- USB, wide viewing angle, stainless steel, embedded, high-resolution, IP65
- Width
234 mm
(9.2126 in)- Height
344.7 mm
(13.5709 in)- Thickness
17.39 mm
(0.685 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 60 °C
(140 °F)
Description
Overview The zero-bezel industrial 13.3-inch PCAP multi-touch monitor AMG-13OPUS01T1 by Amongo is designed for HMI and embedded display applications. It features a full-flat PCAP 10-point touch surface, IP65-rated front protection, etched anti-glare glass sensor and a steel outer frame. The display uses an AUO G133HAN01.0 13.3-inch AHVA panel (1920x1080). Signal interface: LVDS. Power input: DC 12V.
Main features
Technical specifications
Applications
Options & interfaces
Main features
- Full-flat PCAP multi-touch (10 points)
- Zero-bezel front with IP65 protection (front)
- Etched AG glass sensor; tempered glass optional
- Steel outer frame for industrial mounting
- AUO 13.3-inch AHVA panel, 1920x1080, 400 nits
- Touch controller: mXT2952T2 (I2C/USB) or USB
Technical specifications
- Model Name: AMG-13OPUS01T1
- Screen Size: 13.3 inch
- Active Display Area (mm): 293.472 (H) x 165.078 (V)
- Pixel Pitch (mm): 0.15285 (H) x 0.15285 (V)
- Display Mode: AHVA
- Display Resolution: 1920 x 1080
- Display Colors: 16.7M
- Contrast Ratio: 800:1
- Brightness: 400 nits
- Backlight: LED
- Viewing Angles (CR=10): 178° (H); 178° (V)
- Response Time (Typ. Tr+Tf): 25 ms
- Touch Screen: PCAP Touch (10 points)
- Light Sensor: Optional
- Tempered Glass: Optional
- Signal Connector: LVDS
- Power Input: DC 12V
- Touch Controller: USB (option: mXT2952T2 I2C/USB)
- Dimension (V x H x T) mm: 344.7 x 234 x 17.39
- Operating Temperature: -20 ~ 60℃ (non-condensation)
- Storage Temperature: -30 ~ 70℃ (non-condensation)
- Relative Humidity: 5 ~ 90% RH
Applications
- Industrial HMI and machine control panels
- Embedded displays for automation and instrumentation
- Kiosks, ticketing and self-service terminals
- Panel-mount displays for test and measurement equipment
Options & interfaces
- Touch controller options: mXT2952T2 (I2C/USB) or USB
- Optional features: tempered glass, light sensor
- Signal: LVDS; Power: DC 12V
