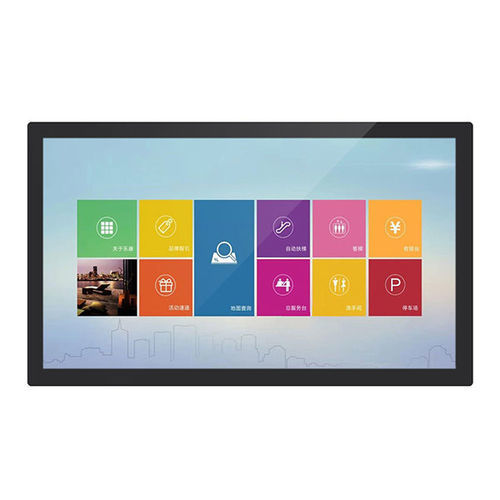

LCD monitor AMG-18IPPE01T1multitouch screenresistive touch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, resistive touch screen, multitouch screen, projected capacitive touchscreen, PCAP touchscreen, 5-wire resistive touch screen, capacitive touch screen, infrared touchscreen, with PCT touch screen, LED backlight
- Applications
- industrial, for industrial machines, for digital signage, for displays, for HMI interface
- Display size
- 18.5"
- Resolution
- 1366 x 768
- Mounting
- flush-mount
- Other characteristics
- HDMI, USB, frameless
- Width
273.6 mm
(10.7717 in)- Height
448.5 mm
(17.6575 in)- Thickness
47 mm
(1.85 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Product overview
The 18.5in zero-bezel PCAP touch industrial monitor AMG-18IPPE01T1 by Amongo Display features a flush, bezel-free front and industrial-grade components with LED backlight. Supports 10-point projected capacitive touch and can be configured with optional light sensor and tempered glass. Designed for public-facing and harsh environments that require reliable multi-touch input and a seamless front surface.
Touch options
Applications
Technical specifications
The 18.5in zero-bezel PCAP touch industrial monitor AMG-18IPPE01T1 by Amongo Display features a flush, bezel-free front and industrial-grade components with LED backlight. Supports 10-point projected capacitive touch and can be configured with optional light sensor and tempered glass. Designed for public-facing and harsh environments that require reliable multi-touch input and a seamless front surface.
Touch options
- PCAP (projected capacitive) — 10-point
- Resistive
- Infrared (IR)
- Surface Acoustic Wave (SAW)
Applications
- ATM / VTM terminals
- Self-service terminals
- Kiosks and retail kiosks
Technical specifications
- Model Name: AMG-18IPPE01T1
- Screen Size: 18.5 in
- Active Display Area: 409.8 (H) x 230.4 (V) mm
- Pixel Pitch: 0.3 (H) x 0.3 (V) mm
- Display Resolution: 1366 x 768 pixels
- Display Color: 16.7M
- Contrast Ratio: 1000:1
- Brightness: 250 nits
- Backlight: LED
- Viewing Angles (CR=10): 170° (H) / 160° (V)
- Response Time: 5 ms (Typ. Tr+Tf)
- Touchscreen: PCAP Touch, 10 points
- Touch Controller Interface: USB
- Signal Connector: HDMI
- Power Input: DC 12V
- Dimensions (V x H x T): 448.5 x 273.6 x 47 mm
- Operating Temperature: 0 ~ 50 °C (non-condensing)
- Storage Temperature: -20 ~ 60 °C (non-condensing)
- Relative Humidity: 5 ~ 90 % RH
- Optional: Light sensor, Tempered glass
