LCD monitor AMG-27IPPO01T1multitouch screenLED backlightwith PCT touch screen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, multitouch screen, PCAP touchscreen, capacitive touch screen, with PCT touch screen, LED backlight
- Applications
- industrial, for industrial machines, for digital signage, for HMI interface, for vehicles, POS, for IoT applications, for CNC machines, for food applications
- Display size
- 27"
- Resolution
- 1920 x 1080
- Mounting
- panel-mount
- Other characteristics
- HDMI, VGA, USB, DVI port, wide viewing angle, IP65
- Width
650.4 mm
(25.6063 in)- Height
388.4 mm
(15.2913 in)- Thickness
46 mm
(1.811 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Product Overview

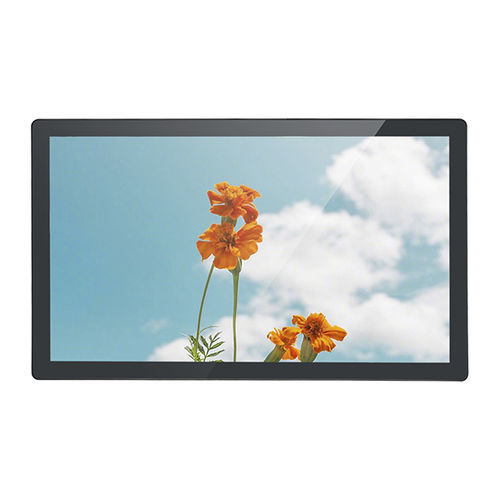

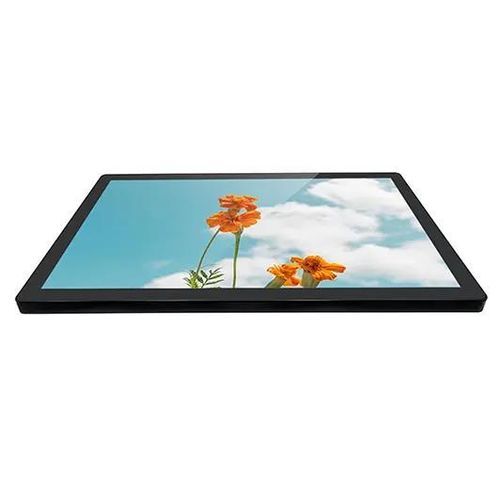

The 27-inch touch screen LCD monitor Amongo AMG-27IPPO01T1 is a large-format interactive display designed for industrial and commercial applications. It delivers Full HD 1920×1080 image quality with an LED backlight, a 10-point PCAP capacitive touch interface and a full-flat front panel rated IP65 for front dust and splash protection.
Technical Details (as listed)
Key Specifications
The 27-inch touch screen LCD monitor Amongo AMG-27IPPO01T1 is a large-format interactive display designed for industrial and commercial applications. It delivers Full HD 1920×1080 image quality with an LED backlight, a 10-point PCAP capacitive touch interface and a full-flat front panel rated IP65 for front dust and splash protection.
- Original high-quality LCD panel with LED backlight: 300 nits brightness, 3000:1 contrast
- PCAP 10-point multi-touch with Mohs 7 anti-scratch surface; tempered glass optional
- Full-flat front design with front IP65 sealing; optional ambient light sensor
- Industrial-grade components for continuous operation; customization services available
- Multiple signal inputs (VGA, DVI-D, HDMI, Audio) and USB touch controller
Technical Details (as listed)
- Model: AMG-27IPPO01T1
- Screen size: 27-inch — Active display area 597.6 × 336.15 mm
- Pixel pitch: 0.31125 mm; Resolution: 1920 × 1080
- Brightness: 300 nits; Contrast ratio: 3000:1; Display mode: 16.7M
- Backlight: LED; Viewing angles: 178°/178°; Response time: 12 ms
- Touch screen: PCAP 10 points; Touch controller: USB
- Signal connector: VGA, DVI-D, HDMI, Audio
- Power input: DC 12V
- Dimensions (V × H × T): 650.4 × 388.4 × 46 mm
- Operating temperature: 0–50°C (non‑condensing); Storage temperature: -20–60°C
- Relative humidity: 5%–90% RH
Key Specifications
- Tempered glass: Optional
- Light sensor: Optional
- Typical applications: industrial kiosks, HMI, POS, digital signage
- Customization: mechanical and interface customization available on request
