LCD monitor AMG-09IPGD02T1multitouch screenLED backlightwith PCT touch screen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, multitouch screen, PCAP touchscreen, capacitive touch screen, with PCT touch screen, LED backlight
- Applications
- for HMI interface
- Display size
- 9.7"
- Resolution
- 1024 x 768
- Mounting
- for integration, housed
- Other characteristics
- VGA, USB, DVI port, wide viewing angle
- Width
259 mm
(10.1969 in)- Height
215 mm
(8.4646 in)- Thickness
38.8 mm
(1.528 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Product overview

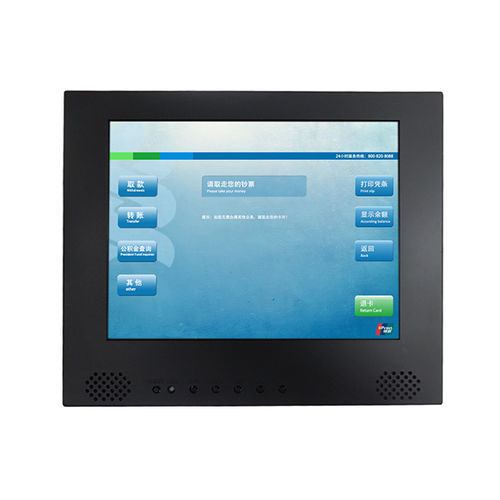

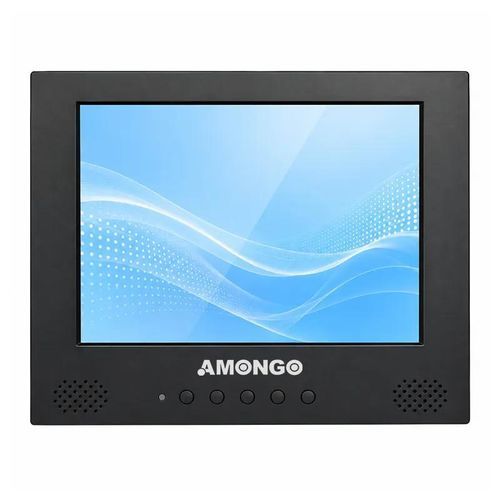

This 9.7-inch industrial PCAP touch monitor AMG-09IPGD02T1 is designed for ATM and self-service kiosk installations. It integrates a microwave proximity sensor for automatic wake-up and a 10-point PCAP touch panel in a plastic frame housing suitable for kiosk mounting.
Key features
Typical applications
Specifications
This 9.7-inch industrial PCAP touch monitor AMG-09IPGD02T1 is designed for ATM and self-service kiosk installations. It integrates a microwave proximity sensor for automatic wake-up and a 10-point PCAP touch panel in a plastic frame housing suitable for kiosk mounting.
Key features
- Microwave proximity sensor for automatic detection
- PCAP multi-touch, 10-point touch
- Plastic frame housing for kiosk integration
- LED backlight and industrial-grade components for continuous operation
- Signal inputs: VGA, DVI-D, USB (touch via USB)
- Power input: DC 12V
Typical applications
- ATM rear-side displays
- VTM machines and bank self-service kiosks
- Government information terminals
- Retail and public information kiosks
Specifications
- Model: AMG-09IPGD02T1
- Screen size: 9.7-inch
- Active display area: 196.61 (H) x 147.46 (V) mm
- Resolution: 1024 x 768 pixels
- Pixel pitch: 0.192 x 0.192 mm
- Display mode: Normally black
- Brightness: 260 nits
- Contrast ratio: 900:1
- Display color: 16.2M
- Backlight: LED
- Viewing angles (CR=10): 170° (H) / 170° (V)
- Response time: 20 ms (Typ. Tr+Tf)
- Touch technology: PCAP multi-touch, 10 points
- Special sensor: Microwave proximity sensor
- Signal inputs: VGA, DVI-D, USB (touch via USB)
- Power input: DC 12V
- Dimensions (W x H x D): 259 x 215 x 38.8 mm
- Operating temperature: 0 to 50 °C (non-condensing)
- Storage temperature: -20 to 60 °C (non-condensing)
- Relative humidity: 5% to 90% RH
- Housing: Plastic frame shell
- Designed for: ATM / VTM / self-service kiosks and similar industrial kiosk applications
