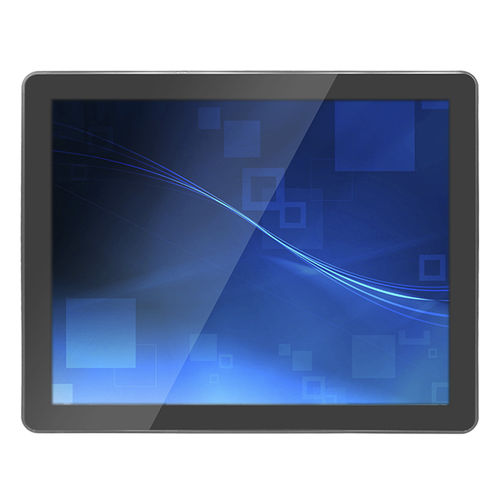

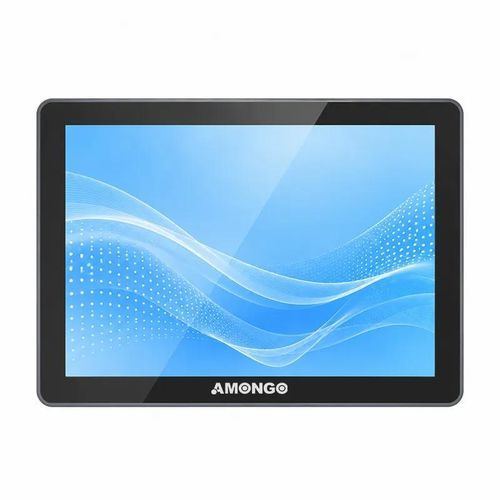

LCD monitor AMG-17OPGD01T3

multitouch screenLED backlightwith PCT touch screen

Overview
Industrial 17-inch PCAP touchscreen LCD monitor AMG-17OPGD01T3 designed for kiosks, AFC, non-cash equipment and industrial HMI applications. Convex full fillet front with integrated bezel provides front IP65 protection.

Key features

• Convex full flat fillet front design
• PCAP multitouch (10 points)
• Plastic bezel with rugged steel housing
• Front protection to IP65 level
• LED backlight with selectable brightness: 250 / 300 / 350 nits
• Interfaces: VGA, DVI‑D; touch via USB
• Power input: DC 12V
• Customization and OEM service available

Typical applications

• Automated fare collection (AFC) terminals
• Kiosks, self-service terminals, ATMs/VTM
• Non-cash payment equipment and industrial control panels

Specification
Model: AMG-17OPGD01T3
Screen size: 17"
Active display area (mm): 337.920 (H) x 270.336 (V)
Pixel pitch (mm): 0.264 (H) x 0.264 (V)
Display mode: Normally white
Resolution: 1280 x 1024
Contrast ratio: 1000:1
Display color: 16.7M
Brightness: 250 / 300 / 350 nits
Backlight: LED
Viewing angles (CR=10): 170° (H) / 160° (V)
Response time (Typ. Tr+Tf): 5 ms
Touch: PCAP touch, 10 points
Signal connector: VGA / DVI‑D
Touch controller interface: USB
Power input: DC 12V
Operating temperature: 0 ~ 50 ℃
Storage temperature: -20 ~ 60 ℃
Relative humidity: 5% ~ 90% RH
Dimensions (V x H x T): 391 x 323.4 x 59.2 mm

Technical specifications

• Model: AMG-17OPGD01T3
• Screen: 17" PCAP touch, 10-point multitouch
• Resolution: 1280 x 1024
• Active area: 337.920 x 270.336 mm
• Pixel pitch: 0.264 x 0.264 mm
• Brightness options: 250 / 300 / 350 nits
• Contrast ratio: 1000:1
• Color depth: 16.7M
• Backlight: LED
• Viewing angles: 170° (H) / 160° (V)
• Response time: 5 ms (typ.)
• Signal ports: VGA, DVI‑D; touch via USB
• Power: DC 12V
• Operating temperature: 0 ~ 50 ℃
• Storage temperature: -20 ~ 60 ℃
• Relative humidity: 5% ~ 90% RH
• Front protection: front panel designed for IP65
