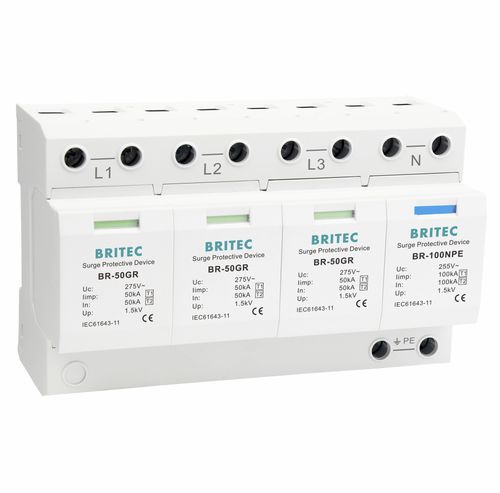

Type 1 surge arrester BR-50GR 3+1for electrical installationselectronic equipmentN-PE
Add to favorites
Compare this product
Characteristics
- Type
- type 1
- Applications
- for electrical installations, electronic equipment
- Other characteristics
- N-PE, DIN rail, AC, three-phase, thermoplastic
- Voltage
385 V
- Primary current
50,000 A, 100,000 A
Description
Features:
· Lightning current arresting capacity to 50kA (10/350) per pole.
· Max backup fuse 500A.
· Combination arrestor, Type 1+2, 3P+NPE, with visual function display, for use in TN-S and TT system.
Application：
· Suitable for TT and TN-S system.
· Used in industrial systems and buildings with external lightning protection of Classes I to IV.
· For the protection of low voltage distribution systems against direct lightning strike into the overhead power supply line or external lightning protection system.
· Can be used in standard distributor housing.
· Used to protect all kinds of electrical equipment in the power system from lightning over-voltage, operation over-voltage, power frequency transient over-voltage impact damage to an electrical appliance.
Advantage：
· Competitively priced against other brands.
· High speed action response time.
· With overheat protection.
· Large flow capacity.
· The structure is rigorous, and the maintenance is simple.
Catalogs
BR-50GR 3+1
1 Pages
