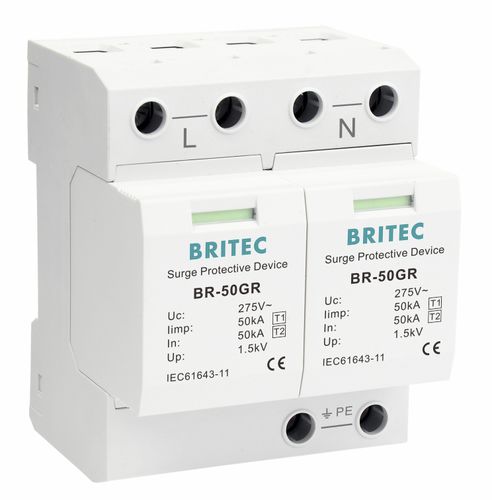

Type 1 surge protector BR-50GR 2P series

type 2class Iclass II

Width of one pole: 36mm. Fault indication via red mark in the inspection window. 35mm DIN rail mountable. With remote signaling contact for control device for your option. In accordance with EN / IEC 61643. High security performance. Easy maintenance. Red indicates broken, replacement notice, which is clear and easy distinguished. Application: Used in the main distribution boards, for use primarily on mains power distribution systems to protect connected facility from transient overvoltage. Suitable for the low voltage main power distribution cabinet/box of buildings, and the facility connected between single phase AC power supply and system in parallel. Use of attention: 1. The grounding path should be as short as possible, and the length should not exceed 1.5 meters. 2. When installing, pay attention to cables coming in and out of surge protective devices, so as to avoid the two coupling of surge. 3. The protected equipment must have good grounding, and the grounding impedance is in accordance with the relevant national standards. 4. After correct installation, it can work steadily for a long time. If it is found that the transmission performance of the system is reduced or the signal is interrupted due to the cause of surge protection, it should be maintained or replaced in time.
