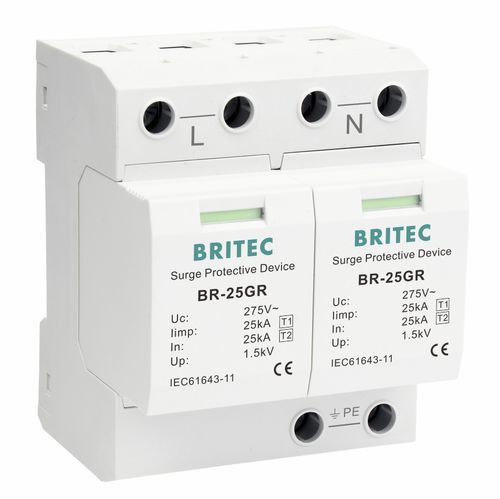

Type 1 surge protector BR-25GR 2Pelectronic equipmentfor electrical installations2-pole
Add to favorites
Compare this product
Characteristics
- Type
- type 1
- Applications
- electronic equipment, for electrical installations
- Other characteristics
- 2-pole, fast-response, thermoplastic, DIN rail, AC, low-voltage, single-phase
- Voltage
275 V, 385 V
- Primary current
Min.: 0 A
Max.: 100,000 A
25,000 A
Description
Features:
· Iimp: 25kA/pole (10/350µs).
· Voltage protection level: < 2.0kV.
· Standardized 35mm rail mounting.
· Compliant with EN / IEC 61643-11 standards.
Application：
· Suitable for the Class 1 lightning protection of the power system.
· Widely used in mobile communication base stations, microwave communication bureaus/stations, telecommunication rooms, industrial mining, civil aviation, financial securities and other power systems.
· For various power distribution stations, power distribution rooms, power distribution cabinets, switch boxes, and other equipment that are important and vulnerable to lightning strikes.
· Against surges at direct lightning stroke (in presence of lightning conductor)and against indirect surges on the electrical networks.
Advantage：
· High flame retardant, anti-corrosion.
· Reliable quality and long service life.
· Large discharge energy.
· High protection level.
Installation：
· Class I surge protector is suitable for LPZOA area of lightning strike or interface between LPZOB and LPZ1 area.
Catalogs
BR-25GR 2P
1 Pages
