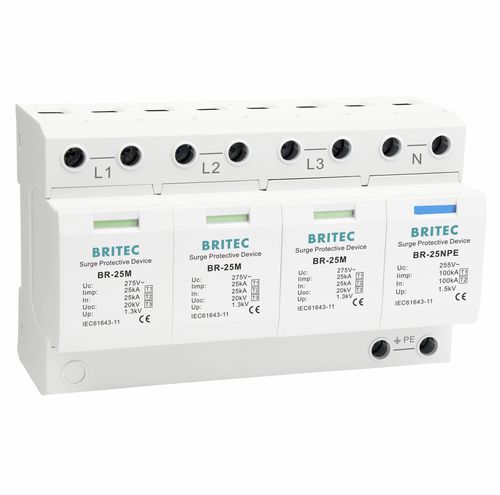

Type 1 surge arrester BR-25M 3+1 seriestype 2type 3class I
Add to favorites
Compare this product
Characteristics
- Type
- type 2, type 1, class II, type 3, class I, class III
- Applications
- for power supplies, remote signaling, for electrical installations, for transient current protection, electronic equipment, electrical line
- Other characteristics
- with fault indication, N-PE, varistor, fast-response, low-voltage, AC, three-phase, DIN rail
- Voltage
Max.: 320 V
Min.: 120 V
- Primary current
25,000 A, 100,000 A
Description
The surge arrestors BR-25M meet the Class I and Class II requirement class according to IEC 61643-11.
Labeled connections.
Electrical surge protector work by diverting the extra energy in the electrical surge away from the main circuit, usually to “earth”.
Surge protection devices (SPD) which is connected at the main distribution board is constantly monitoring the supply voltage.
Application:
These devices protect low-voltage consumer systems from overvoltage.
Applied in Class I + Class II (Class B + C) for TT and TN-S power supply system.
