Heat flow-meter for thermal conductivity testing
Hukseflux Thermal Sensors B.V.

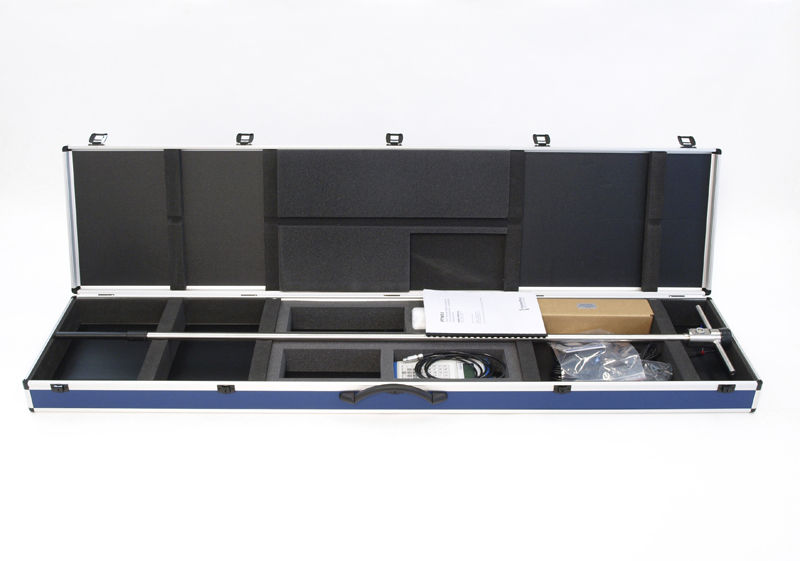

The measurement method is based on the so-called Non-Steady-State Probe (NSSP) technique, which uses a probe (also called thermal properties sensor or thermal needle) in which both a heating wire and a temperature sensor are incorporated. The probe is inserted into the soil. From the response to a heating step the thermal resistivity (or the inverse value, the conductivity) of the soil can be calculated. The measurement with FTN complies with the IEEE Guide for Soil Thermal Resistivity Measurements (IEEE Standard 442-1981) as well as with ASTM D 5334-00 Standard Test Method for Determination of Thermal Conductivity of Soil and Soft Rock. The main application of FTN is route surveying for high voltage electric power cables and for heated pipelines.
