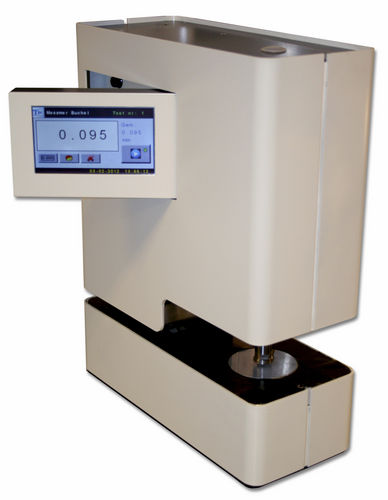

The new model 49-56 precision digital micrometer combines a modern contemporary look with a robust mechanical design and new improved electronics, including a digital linear encoder. The system features a comprehensive software program for controlling test speed, auto zero, auto sample detect, selectable opening distance, selectable measurement range, selectable dwell time, built-in auto sample feed option, statistics, multiple languages and calibration records. Designed for thickness measurements of sheet materials, the 49-56 can be configured to meet any ISO, ASTM, EDANA or other International specifications for paper, corrugated, plastics, plastic film, tissue paper, nonwovens, textiles and other sheet like substrates.
Unlike conventional micrometers, the 49-56 precision micrometer offers a cantilever balance system to allow extremely light pressure measurements. This feature also allows adding or removing additional weights for multiple pressure applications.
APPLICATIONS
Paper, Paperboard, Corrugated, Cloth, Plastic, Plastic film, Textile Fabrics, Nonwovens, Battery Separators, Felts, Floor Coverings, Leather, Tissue Paper, Paper Towels, Handkerchiefs and Wipes
SPECIFICATIONS
Model number: 49-56
Measuring range: 0.000 - 10.000 mm
0 - 10000 μm
0.00 - 394.00 mil
Measuring units: μm, mm and mil
Accuracy: ± 1 μm or 0,1% of the reading,
whichever is greater.
Opening Gap: Adjustable 1.0 11.0 mm
Delay time: Adjustable 0 30 seconds
Test mode: OCO open close open
COC close open - close
Statistics display: Nr of tests, Nr of tests excluded from statistics, Max, Min, Range, Average, Standard deviation, Coefficient of variation
