In-line flow meters

Volumetric flow rate: 2 l/min - 100 l/min
Process temperature: 0 °C - 80 °C
Process pressure: 20 bar

... 7 segment flow rate indication Flow rate and temperature Standardised button programming No parts protruding into the flow Switching and/or analogue output (combinations possible) Can be used for water/glycol mixtures ...

Volumetric flow rate: 0.2 l/min - 80 l/min
Process temperature: 0 °C - 60 °C
Process pressure: 10 bar

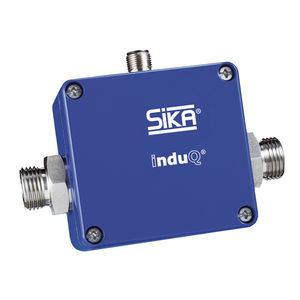

... Flow rate sensor with amplifier Magnetic-inductive measuring principle Flow indication with bright red 3-digit 7 segment indication Set-up via buttons at the device ...

Volumetric flow rate: 1 l/h - 600 l/h
Process temperature: -40 °C - 85 °C
Process pressure: 2 bar - 25 bar

... DFМ fuel flow meter is used for diesel fuel/oil consumption measurement and engine operation time monitoring of mobile and stationary machinery: - trucks, agricultural, construction, utility vehicles; - railroad machinery; - small watercrafts; - diesel ...

Volumetric flow rate: 0.1 l/min - 150 l/min
Process temperature: 0 °C - 80 °C
Process pressure: 0 bar - 200 bar

... As a cost-effective and lightweight alternative to the VS volume sensor, we have launched the VSE EF ecoflow series onto the market. The VSE EF ecoflow aluminium flow meter uses the same gearwheel pairs as in the VS. The flow meters work in accordance ...

Volumetric flow rate: 0 l/min - 25 l/min
Process pressure: 0 bar - 34.47 bar
Precision: 1 %

... The HFM-200/HFC-202 is Teledyne Hastings' flexible, general purpose series of mass flow meters and controllers. Featuring reliability and stability, the 200 Series is chosen by OEM's for its very stable performance with varying ambient conditions. ...

Volumetric flow rate: 0 l/min - 1,000 l/min
Process pressure: 0 Pa - 6,894,757.29 Pa
Precision: 1 %

... The HFM-201/HFC-203, Teledyne Hastings' flexible, general purpose series of mass flow meters and controllers accurately measure and control mass flow in a variety of applications. Featuring reliability and stability, the 200 Series is chosen for its ...

Volumetric flow rate: 0 l/min - 25 l/min
Process pressure: 0 Pa - 6,894,757.29 Pa
Precision: 0.75, 1 %

... The all metal HFM-300/HFC-302 is Teledyne Hastings' metal sealed, fast response series of mass flow meters and controllers. Featuring reliability and stability, the 300 Series is chosen by OEM's for its fast response under a wide range of conditions. ...

Mass flow rate: 1 kg/h - 20,000 kg/h
Process temperature: -20 °C - 450 °C
Process pressure: 6, 30 bar

... Microwave-based flow measurement for bulk solids MF 3000 Numerous bulk material applications require continuous measurement of mass flow, e.g. for exact dosing of a material or to determine the flow into a container. Many of the measuring systems commonly ...

Process temperature: -40 °C - 60 °C
Process pressure: 4, 1.6, 1, 0.6 MPa
Precision: 0.2, 0.5 %

... Description
The MFE600-E Electromagnetic Flowmeter is an industrial-grade volumetric flow measuring instrument designed for reliable liquid flow measurement across a wide range of pipe sizes and process conditions. It integrates dedicated hardware ...

Volumetric flow rate: 0 m³/s - 1.25 m³/s
Process temperature: -20 °C - 110 °C
Process pressure: 16 bar - 40 bar

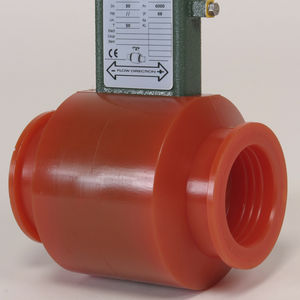

... The MS 1000 wafer sensor is easy to assemble thanks to the absence of flanges, it is installed by inserting it between various types of counter flanges (UNI, DIN, ANSI, JIS etc.). It is suitable for all main applications, particularly in the water ...

Process temperature: -10 °C - 100 °C
Process pressure: 1,600,000 Pa
Precision: 2 %

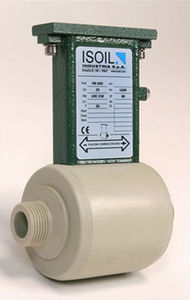

... The compact electromagnetic flow meter CS3900 ISOMAG integrates both the sensor and the converter in a single body. It is ideal for measuring fluid temperature and for flow rate adjustments based on process temperature, cooling systems for machine ...

Volumetric flow rate: 0 m³/s - 0.0778 m³/s
Process temperature: -20 °C - 150 °C
Process pressure: 16 bar - 25 bar

... The MS 2410 sanitary sensor ISOMAG for electromagnetic flow meters is specific for use in food or pharmaceutical plants. It is resistant to vacuum (200 mbar absolute at a temperature of 100 ° C), ideal for CIP cycles, 3A and FDA certified. Description The ...

Process temperature: -25 °C - 85 °C
Process pressure: 25 psi

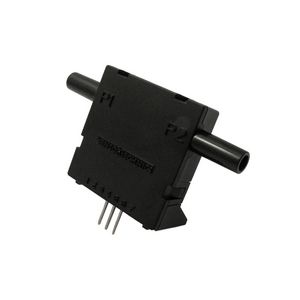

... PFLOW: OEM MEMS mass air flow sensors for medical and process control applications With high resistance towards clogging and pressure shocks PEWATRON has released the new MEMS mass air flow sensor PFLOW which incorporates the latest MEMS and microelectronics ...

Volumetric flow rate: 5.13 m³/h - 951.57 m³/h
Process temperature: -18 °C - 121 °C
Process pressure: 16.5, 41 bar

The ST75 Series thermal flow meters are a compact, low cost solution for accurate, repeatable direct mass flow measurement of air and gases. These in-line (spool-piece) style flow meters have no moving parts and are available for use in pipe diameters ...

Volumetric flow rate: 0.1667 l/min - 23.75 l/min
Process temperature: -40 °C - 454 °C
Process pressure: 70, 10 bar

ST80 is a high performance, rugged thermal dispersion technology air/gas flow meter that combines ultra-reliable, feature-rich electronics, and FCI innovations such as Adaptive Sensing Technology™ (AST™) with the industry's most extensive selection of ...

Volumetric flow rate: 0.1667 l/min - 23.75 l/min
Process temperature: -40 °C - 454 °C
Process pressure: 70, 10 bar

ST100A is high performance thermal dispersion technology gas flow meter that combines the most feature- and function- rich electronics, and innovations such as FCI patented Adaptive Sensing Technology™ (AST™), with the industry's most advanced flow sensors ...

Volumetric flow rate: 4 l/h - 200,000 l/h
Process temperature: -50 °C - 200 °C
Precision: 2 %

... Technical Data BF300E for high flows of gas, liquid and steam Case Material: SS316 Body wetted parts: SS316, Others on request. Indication via magnetic coupling (no sealed) Scales calibrated: in l/h, m3/h, kg/h, %, etc.. Flow rates for: SS316 Float: -Water: ...

Volumetric flow rate: 4 l/h - 15,000 l/h
Process temperature: -30 °C - 100 °C
Precision: 5, 2 %

... Technical Data BPF300 for high flows of gas and liquid Case material: SS316; Aluminum alloy available Body Wetted Parts Material: in PVC, CPVC, PVDF indication via magnetic coupling (no sealed) Scales calibrated: in l/h, m3/h, kg/h, %, etc. Flow rates ...

Volumetric flow rate: 30 l/h - 120,000 l/h
Process temperature: -50 °C - 400 °C

... Technical Data BR250S for high flows of gas, liquid, steam and oil Case Material: Aluminum alloy case with paint; SS316 available Body Wetted Parts Material: SS316, and others on request, indication via magnetic coupling (no sealed) Lens Material: Safety ...

Volumetric flow rate: 1.6 m³/h - 3,125 m³/h
Process temperature: -40 °C - 70 °C
Process pressure: 1 bar - 10 bar

... The very FIRST EPD Electromagnetic Flow Meter is certified by OIML in Asia. EPD30 offers the industry’s widest range of liners, electrodes and sizes to meet the needs of even the most demanding process applications in sectors as diverse as chemical, ...

Process temperature: -20 °C - 90 °C
Process pressure: 6 bar - 30 bar

Our solid flow meter MF 3000 is designed for flow measurement in metallic pipes from a few kg/h to many t/h. The system is suitable for on-line measurements of powders, dusts, pellets, and granules from 1 nm up to 2 cm in pneumatic or free fall conditions. ...

... • Designed according to DIN EN ISO 5167-4 • Undisturbed straight pipeline • Designed for liquids, gases or light fibres • Very low deposition danger – suitable for transporting light fibres • 2 X 8 pressure taps guarantee highest accuracy • Very low pressure ...

... MASS FLOW METER 4040 SKU: 4040 Range: 0-300 L/min. Calibration: Air, O2, N2. Connection: 22 mm ISO. $1095.00 USD PRODUCT DETAILS Whether measuring gas flows in a laboratory, hospital or clinic, or manufacturing setting, TSI mass flow meters provide accurate ...

Volumetric flow rate: 0.1 l/min - 100 l/min
Process temperature: -10 °C - 70 °C
Process pressure: 10, 64, 100 bar

... The High Performance MFM / MFC That Adapts To Your Process EL-FLOW® Prestige, the latest generation thermal mass flow meters and controllers for gases, represents a truly ground-breaking shift in versatility and user-friendliness. Its principal customer ...

Volumetric flow rate: 0.1 l/min - 1,670 l/min
Process temperature: -10 °C - 70 °C
Process pressure: 400, 200, 100, 64 bar

... EL-FLOW® Select series Mass Flow Meters/Controllers are thermal mass flow meters of modular construction with a ‘laboratory style’ pc-board housing. Control valves can either be integrally or separately mounted, Applications Analytical/environmental ...

Volumetric flow rate: 0.1 l/min - 50 l/min
Process temperature: -10 °C - 50 °C
Process pressure: 1,000, 1,500 psi

Metal Seal Gas Mass Flow Meters and Controllers of Bronkhorst are characterised by their unique, internationally patented metal-to-metal seal construction with excellent resealing capability. Furthermore they distinguish themselves by a high surface quality ...

Mass flow rate: 2 lb/h - 200 lb/h
Volumetric flow rate: 1.69 ft³/min - 90 ft³/min

Eastern Instruments is excited to introduce the CentriFlow BWS, an economical, yet extremely accurate gravimetric in-line mass flow meter that positions itself as an alternative to impact flow meters and belt scales. The CentriFlow BWS measures product ...

Mass flow rate: 100 lb/h - 1,000,000 lb/h
Volumetric flow rate: 0.1 ft³/min - 156.3 ft³/min
Repeatibility: 0.1 %

For the ultimate in accuracy, the CentriFlow CFM is the meter of choice. With typical accuracies of within +/-0.25% for most flowable products, the CentriFlow CFM offers a variety of customizable features for flow surfaces and options for enhancing the ...

Volumetric flow rate: 0.21 m³/h - 152.91 m³/h

The CentriFlow Type I Meter, just as all CentriFlow brand meters, is a gravimetric mass flow meter designed to measure bulk solids in process. The Type I Meter is designed to be installed directly after feed devices that move material in a horizontal ...

Process temperature: -30 °C - 160 °C
Precision: 1 %

... Product Overview
The BBUFM-W is a wall-mounted ultrasonic liquid flow meter designed for long-term online monitoring. It uses transit-time measurement and supports clamp-on, insertion, or pipe-section transducers for water, sewage, cooling water, ...

Volumetric flow rate: 0 m³/h - 19.8 m³/h
Process temperature: 0 °C - 90 °C
Precision: 2 %

... Product Overview
The TAD series ultrasonic in-line flow sensor from XY-TEK integrates sensing and signal processing in a compact housing to provide continuous liquid flow measurement without external computing hardware. With no moving parts, ...

Volumetric flow rate: 0 l/min - 150 l/min
Process temperature: 0 °C - 90 °C
Precision: 1 %

... Product overview
The TPK series inline ultrasonic flow sensors / flow meters feature an integrated design with built-in electronics for direct flow-rate measurement.
The TPK in-line flow sensor has no moving parts or dead zones, ...

Volumetric flow rate: 0 l/min - 330 l/min
Process temperature: 0 °C - 60 °C
Precision: 2 %

... In-line Ultrasonic Flow Sensor

Overview
XY-TEK TAD series inline ultrasonic flow sensors feature a compact design, it can measure and output flow rate without external circuit systems. With ...

Volumetric flow rate: 1.2 m³/h - 11,000 m³/h
Process temperature: -20 °C - 120 °C
Process pressure: 16, 10, 25 bar

Vortex flow meter is a volume flow meter that measures the volume flow of gas, steam or liquid and the volume flow or mass flow of the standard condition based on the Karman vortex principle. It is mainly used for flow measurement of industrial pipeline ...

Process temperature: 60 °C
Precision: 1, 1.5 %

5000 series electromagnetic flow meter is a new flow meter that can be used in non-full tubes. It is ideal for water applications or any dirty liquids which is conductive or water based, including water, wastewater, corrosive liquids, pulps, acid, alkaline ...

Process temperature: -20 °C - 110 °C
Precision: 1 %
Repeatibility: 0.2 %

... Printer Ultrasonic Water Flowmeter advanced circuit design, the integration of the latest semiconductors, the user-friendly software interface both in English and Chinese languages and small-sized PCB board. Application : ● Water supply ...

Volumetric flow rate: 0.1 m³/h - 61,072 m³/h
Process temperature: -25 °C - 180 °C
Process pressure: 40 bar

... The AI.MF Series electromagnetic flow meter from ASIT Italia is the ultimate professional instrument for the precise measurement of conductive liquids. Thanks to the absence of moving parts, it guarantees zero maintenance and zero pressure ...

Volumetric flow rate: 0.1 m³/h - 61,072 m³/h
Process temperature: -25 °C - 180 °C
Process pressure: 40 bar

... The AI.MF Series electromagnetic flow meter from ASIT Italia is the ultimate professional instrument for the precise measurement of conductive liquids. Thanks to the absence of moving parts, it guarantees zero maintenance and zero pressure ...

Volumetric flow rate: 5 m³/h - 6,000 m³/h
Process temperature: 250 °C
Precision: 1 %

... The AI.VFM Series flow meter is the ultimate instrument for precise measurement of gases, steam, and liquids. Utilizing the Karman vortex physics principle, it offers extremely reliable volumetric and mass measurement, making it ideal ...

Volumetric flow rate: max 300.0 l/s
Process temperature: 0 °C - 40 °C
Process pressure: 0 bar - 20 bar

... AQ FLOW SENSOR – Precise. Robust. Truly Real-Time. The AQ FLOW SENSOR is a patented insertion flowmeter, offering a smart alternative to ultrasonic and inductive devices. It enables real-time flow measurement with no service interruption, thanks to hot ...

Volumetric flow rate: max 300.0 l/s
Process temperature: 0 °C - 40 °C
Process pressure: 0 bar - 20 bar

... AQ IoT FLEX COMPACT SHAFT – Flow Monitoring in One Smart Package The AQ IoT FLEX COMPACT SHAFT combines the AQ insertion flow sensor with a compact, watertight shaft system. This ready-to-install set enables fast, non-intrusive installation without pipeline ...

Volumetric flow rate: 0.1 m³/h - 68 m³/h
Process temperature: 0 °C - 85 °C
Process pressure: 0 bar - 250 bar

... ● Versatile turbine flow sensor ● Switching output and analog output (4..20 mA / 0..10 V) ● Top quality materials ● Designed for industrial use ● Ingress protection IP 67 ● Infinitely adjustably rotatable cable outlet for clean alignment ● Small, ...

Volumetric flow rate: 0.2 l/h - 220 l/h
Process temperature: 0 °C - 65 °C
Process pressure: 0 bar - 6 bar

... ● Frontal scale imprint ● Optionally valve ● Installation plate Characteristics A float moves in a transparent conical measurement tube, relative to the flow. The position of the float depends on the volume flow (weight force versus resistance to ...

Volumetric flow rate: 2 l/min - 600 l/min
Process temperature: -20 °C - 90 °C
Process pressure: 0 bar - 100 bar

... ● Large analog display ● Monitor and display ● Simple adjustment by means of drag indicator ● Insensitive to dirt ● Short installation length Characteristics The volume flow raises a disc unit (fitted with a magnet) out from a valve seat against ...
