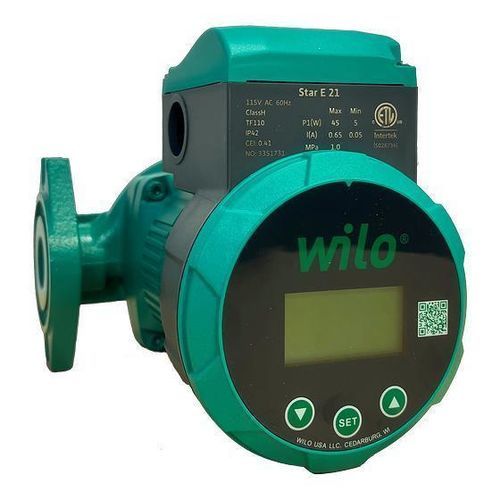

保温式循環装置 Star E 21

製品タイプ
ウェットローター循環ポンプ

概要

• High-efficiency, EC Motor-driven technology
• Differential temperature control
• Auto mode: Automatically adjusts to the system demand
• Three HD modes – proportional control
• Four speed control
• LED display and adjustment buttons for easy set-up and changes

アプリケーション

• Heating and cooling
• Industrial Circulation
• Water/Glycol concentrations up to 50%
• Solar
• Geothermal

機器 / 機能

• High-efficiency, EC Motor-driven technology
• Differential temperature control
• Auto mode: Automatically adjusts to the system demand
• Three HD modes – proportional control
• Four speed control
• LED display and adjustment buttons for easy set-up and changes

技術データ

• Fluid temperature range: 36°F to 230°F
• Maximum operating pressure: 145 PSI (10 Bar)
• Cast Iron HT200 pump body
• Composite PA66+30%GF impeller
• Ceramic shaft

納品範囲

• Plastic Composite Check Valves (Included but optional)

製品一覧
Product description | Pump connection | Mains connection | Pieces per pallet | Maximum operating pressure | Article number
Star E 21 | 0.75"-1.5" Two Bolt Flange | 1~115 V, 60 Hz | 120 | 145 psi | 3351731

特性 / 仕様 (caractéristiques / spécifications techniques)

• Type: Wet rotor circulation pump
• Motor: EC motor, high efficiency
• Control modes: Auto mode, differential temperature control, three HD modes (proportional), four speed control
• Display: LED display with adjustment buttons
• Fluid temperature range: 36°F–230°F
• Maximum operating pressure: 145 PSI (10 Bar)
• Pump body material: Cast Iron HT200
• Impeller material: Composite PA66 + 30% glass fiber
• Shaft material: Ceramic
• Pump connection: 0.75"–1.5" two-bolt flange
• Mains: 1~115 V, 60 Hz
• Pieces per pallet: 120
• Article number (example): 3351731
