BLDC servomotor RMD-X6-P6-7-ELE-EU
brushless48 Vpancake type

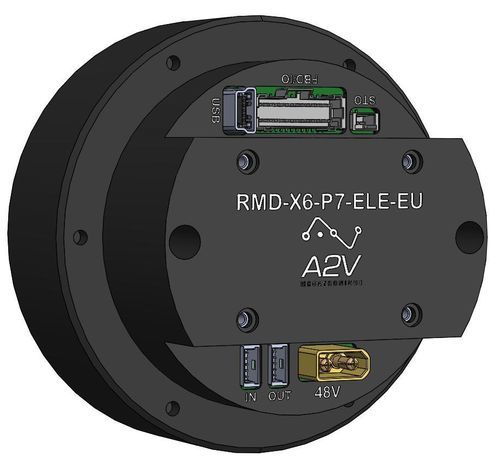

BLDC servomotor - RMD-X6-P6-7-ELE-EU - A2V Mécatronique - brushless / 48 V / pancake type
BLDC servomotor - RMD-X6-P6-7-ELE-EU - A2V Mécatronique - brushless / 48 V / pancake type
BLDC servomotor - RMD-X6-P6-7-ELE-EU - A2V Mécatronique - brushless / 48 V / pancake type - image - 2
Add to favorites
Compare this product
Go to the A2V Mécatronique website for more information

Characteristics

Type
BLDC, brushless
Voltage
48 V
Configuration
pancake type, with integrated driver and coder
Protection class
IP54
Other characteristics
integrated-drive, servo-driven, high-resolution, with built-in electronics, EtherCAT, with built-in encoder
Power

150 W
(0.2 hp)

Intensity

Max.: 9 A

Min.: 4 A

Torque

Max.: 7 Nm
(5.162935 ft.lb)

Min.: 3.5 Nm
(2.581468 ft.lb)

Rotational speed

400 rpm
(2,513.2741 rad.min-1)

Description

Overview
Pancake brushless servo motor RMD-X6-P6-7-ELE-EU with integrated drive, 18-bit encoder and planetary gearbox. Supports EtherCAT and USB communication for precise industrial motion control.

Key information
  • Rated torque: 3.5 Nm
  • Rated speed: 400 rpm
  • Communication: EtherCAT / USB
  • Input voltage: 48 V
  • Rated power: 150 W

Technical summary
Motor type: RMD-X6-P6-7-ELE-EU
Rated speed (rpm): 400
Rated torque (Nm): 3.5
Rated power (W): 150
Input voltage (V): 48
Rated current (A): 4
Peak torque (Nm): 7
Peak current (A): 9
Communication: EtherCAT / USB
2D/3D drawings: 2D plan available
Price: on request (quote)

Options
  • Brake: customizable
  • Protection: IP54 version configurable

Technical specifications
  • Gearbox type: planetary gearbox
  • Reduction ratio: 6:1
  • Input voltage: 48 V
  • Rated power: 150 W
  • Rated torque: 3.5 Nm
  • Rated speed: 400 rpm
  • Rated current: 4 A
  • Peak torque: 7 Nm
  • Peak current: 9 A
  • Backdrive torque: 0.08 Nm
  • Backlash: 10 arcmin
  • Axial load: 775 N
  • Radial load: 1250 N
  • Encoder type: 18-bit encoder
  • Inputs / outputs: 6 IN / 4 OUT / 2 AIN / 2 STO
  • Weight: 360 g
