Brushless servomotor RMD-X6-P36-40-ELE-EU
48 Vpancake typewith integrated driver and coder

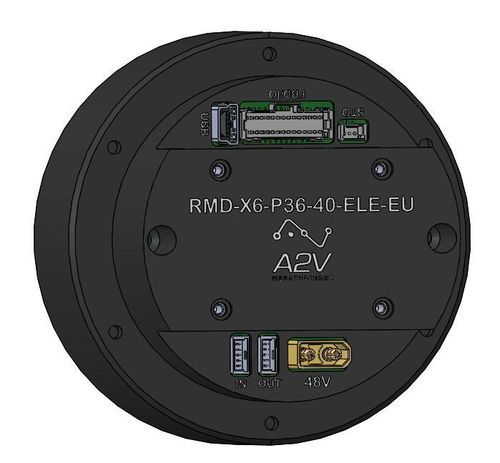

Brushless servomotor - RMD-X6-P36-40-ELE-EU - A2V Mécatronique - 48 V / pancake type / with integrated driver and coder
Brushless servomotor - RMD-X6-P36-40-ELE-EU - A2V Mécatronique - 48 V / pancake type / with integrated driver and coder
Brushless servomotor - RMD-X6-P36-40-ELE-EU - A2V Mécatronique - 48 V / pancake type / with integrated driver and coder - image - 2
Add to favorites
Compare this product
Go to the A2V Mécatronique website for more information

Characteristics

Type
brushless
Voltage
48 V
Configuration
pancake type, with integrated driver and coder
Protection class
IP54
Other characteristics
with built-in encoder, EtherCAT, integrated-drive, with built-in electronics
Power

0.17 kW
(0.23 hp)

Intensity

Min.: 5.2 A

Max.: 10.5 A

Torque

Min.: 18 Nm
(13.276119 ft.lb)

Max.: 40 Nm
(29.502486 ft.lb)

Rotational speed

90 rpm
(565.4867 rad.min-1)

Description

Overview
Pancake brushless motor with integrated drive, 18-bit encoder and planetary gearbox. Communication: EtherCAT / USB. Designed for compact assemblies requiring high torque, precise control and simplified integration.

Main performance
  • Rated torque: 18 Nm
  • Rated speed: 90 rpm
  • Communication: EtherCAT / USB

Summary table — Motor with integrated drive + encoder + reducer
Motor type | Input voltage (V) | Rated power (W) | Rated torque (Nm) | Rated speed (rpm) | Rated current (A) | Peak torque (Nm) | Peak current (A) | Communication | 2D/3D | Price
RMD-X6-P36-40-ELE-EU | 48 | 170 | 18 | 90 | 5.2 | 40 | 10.5 | EtherCAT / USB | 2D drawing available | quote on request

Options
  • Brake: customizable
  • Protection: IP54 option available

Technical specifications
  • Gearbox: planetary
  • Reduction ratio: 36:1
  • Input voltage: 48 V
  • Rated power: 170 W
  • Rated torque: 18 Nm
  • Rated speed: 90 rpm
  • Rated current: 5.2 A
  • Peak torque: 40 Nm
  • Peak current: 10.5 A
  • Backdrive torque: 0.91 Nm
  • Backlash: 15 arcmin
  • Axial load: 775 N
  • Radial load: 1250 N
  • Encoder type: 18-bit encoder
  • Communication: EtherCAT / USB
  • I/O: 6 IN / 4 OUT / 2 AIN / 2 STO
  • Weight: 580 g
