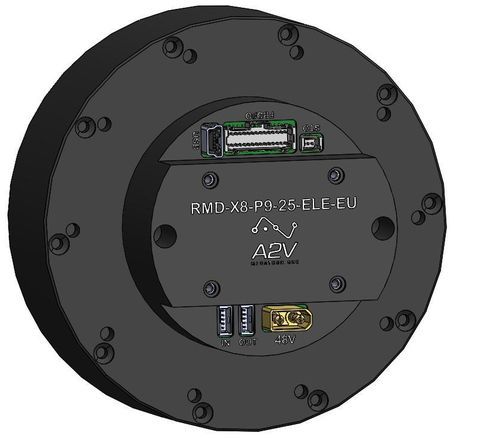

Brushless servo-gearmotor RMD-X8-P9-25-ELE-EU

BLDCbrushless DCplanetary

Overview
Pancake brushless motor with integrated drive, 18-bit encoder and 9:1 planetary gearbox. EtherCAT and USB communication. Nominal torque 10 Nm, nominal speed 110 rpm, supply voltage 48 V. Designed for compact industrial motion systems that require high continuous torque.

Technical summary (table)
Motor type: Pancake brushless
Supply voltage (V): 48
Rated power (W): 125
Rated torque (Nm): 10
Rated speed (rpm): 110
Rated current (A): 3.2
Peak torque (Nm): 25
Peak current (A): 8
Communication: EtherCAT / USB

Options

• Brake: customizable
• Protection: IP54 version available on request

Technical specifications

• Model: RMD-X8-P9-25-ELE-EU
• Gearbox type: Planetary
• Reduction ratio: 9:1
• Supply voltage: 48 V
• Rated power: 125 W
• Rated torque: 10 Nm
• Rated speed: 110 rpm
• Rated current: 3.2 A
• Peak torque: 25 Nm
• Peak current: 8 A
• Backdrive torque: 0.61 Nm
• Backlash: 10 arcmin
• Max axial load: 985 N
• Max radial load: 1250 N
• Encoder: 18-bit
• I/O: 6 IN / 4 OUT / 2 AIN / 2 STO
• Communication: EtherCAT / USB
• Weight: 740 g
