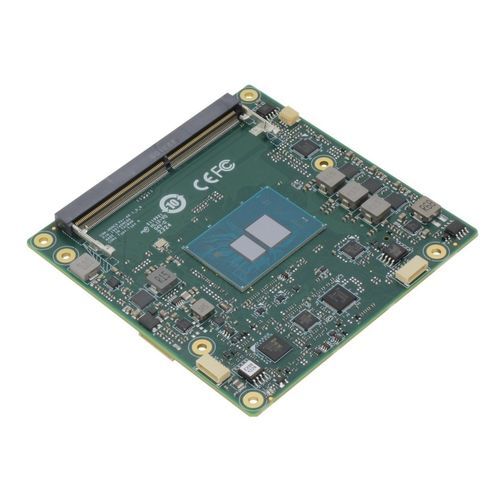

COM Express computer-on-module COM-ASLC6 series

Intel Atom® x7433REIntel Atom® x7211REIntel® Atom™ x7835RE

• Intel Atom® X Series CPU, max TDP 12W • DDR5 SODIMM x 1, up to 16GB (non-ECC) • Intel® Ethernet Controller I226-V/IT x 1 • SATA 6Gb/s x 2 • USB 2.0 x 8, USB 3.2 Gen 2 x 2 • PCIe [x4] (PCIe [x1] x 4 or [x2] x2), Up to 4 PCIe devices • COM Express Type 6, Compact size, 95 x 95mm Optional Accessories: - Part Number: COM-ADNC6-FAN01, Description: Cooler.95*95*29mm.4pin - Part Number: COM-ADNC6-HSP01, Description: Heat Spreader.95*95*11mm - Part Number: ECB-920A-A11-0001, Description: COMe Type 6/10.Carrier Board.ATX.2.5GbE.8USB.2COM.4SATA.PCIe.AT/ATX. Rev.A1.1 Key Features / Technical Specifications: - Processor: Intel Atom® X Series, max TDP 12W - Memory: 1 x DDR5 SODIMM, up to 16GB (non-ECC) - Ethernet: Intel® Ethernet Controller I226-V/IT x 1 - Storage: 2 x SATA 6Gb/s - USB: 8 x USB 2.0, 2 x USB 3.2 Gen 2 - PCIe: [x4] (PCIe [x1] x 4 or [x2] x2), up to 4 PCIe devices - Form Factor: COM Express Type 6, Compact size (95 x 95mm)
