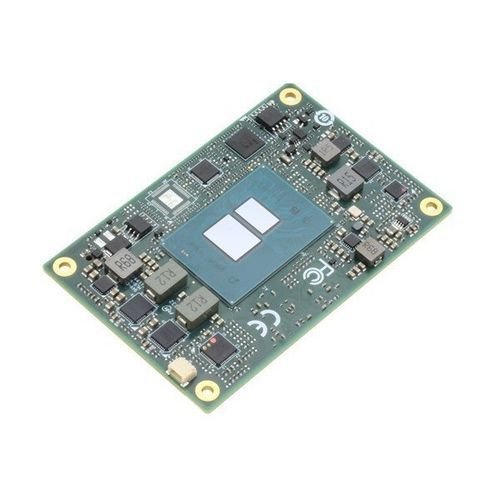

COM Express computer-on-module NANOCOM-ADN series

Intel® Core™ i3-N305Intel Atom® x7425EIntel® Processor N97

COM Express Type 10 with Intel Atom® Processor X Series/Intel® Core™ i3/Processor N-series - Onboard LPDDR5, up to 16GB - Onboard eMMC, up to 64GB - LVDS colay eDP x 1, DDI x 1 - USB 2.0 x 8, USB 3.2 Gen 2 x 2 - PCIe [x1] x 4 - Intel® I226-V/IT 2.5GbE x 1 - COM Express Type 10, 3.31” x 2.17” (84mm x 55mm) Optional Accessories - Part Number: ECB-920A-A11-0001 Description: COMe Type 6/10.Carrier Board.ATX.2.5GbE.8USB.2COM.4SATA.PCIe.AT/ATX. Rev. A1.1 - Part Number: NANOCOM-ADN-HSP01 Description: Heat Spreader. 84 x 55 x 11 mm.Black - Part Number: NANOCOM-ADN-FAN01 Description: Cooler.84 x 55 x 18 mm.4pin Key Features / Technical Specifications: - Processor: Intel Atom® Processor X Series / Intel® Core™ i3 / Processor N-series - Memory: Onboard LPDDR5, up to 16GB - Storage: Onboard eMMC, up to 64GB - Display: LVDS colay eDP x 1, DDI x 1 - USB: USB 2.0 x 8, USB 3.2 Gen 2 x 2 - Expansion: PCIe [x1] x 4 - Ethernet: Intel® I226-V/IT 2.5GbE x 1 - Form Factor: COM Express Type 10, 3.31” x 2.17” (84mm x 55mm)
