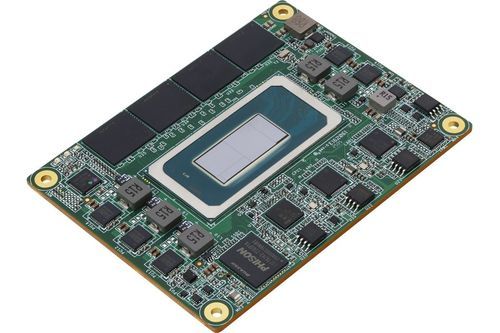

COM-HPC computer-on-module HPC-ARHm

Intel® Core™ UltraSATAEthernet

The COM-HPC Mini module HPC-ARHm is a compact, high-performance embedded computing module based on Intel® Core™ Ultra Processors (Series 1/2), designed for space-constrained applications requiring multiple I/O and high-speed interfaces.

Key features

• Onboard LPDDR5x, up to 64GB
• Onboard NVMe, up to 256GB
• USB 2.0 x8, USB 3.2 (10Gbps) x4
• PCIe Gen4 [x8] x1, PCIe Gen3 [x1] x4, PCIe Gen3 [x4] x1 (2 lanes co-lay with SATA; BOM option)
• Intel® Ethernet Controller I226, 2.5GbE x2
• COM-HPC Mini form factor, 3.74” x 2.76” (95 mm x 70 mm)

Optional accessories

• HPC-ARHm-FAN01 — Cooler. 95 mm x 70 mm x 45 mm. 4pin
• HPC-ARHm-HSP01 — Heat Spreader. 95 mm x 70 mm x 8 mm. Black

Technical specifications

• Model: HPC-ARHm
• Processor family: Intel® Core™ Ultra Processors (Series 1/2)
• Form factor: COM-HPC Mini (95 mm x 70 mm)
• Memory: Onboard LPDDR5x, up to 64GB
• Storage: Onboard NVMe, up to 256GB
• USB: USB 2.0 (8 ports), USB 3.2 (10 Gbps) (4 ports)
• PCIe: PCIe Gen4 x8 (1), PCIe Gen3 x1 (4), PCIe Gen3 x4 (1; 2 lanes co-lay with SATA, BOM option)
• Ethernet: Intel® Ethernet Controller I226, 2.5GbE x2
