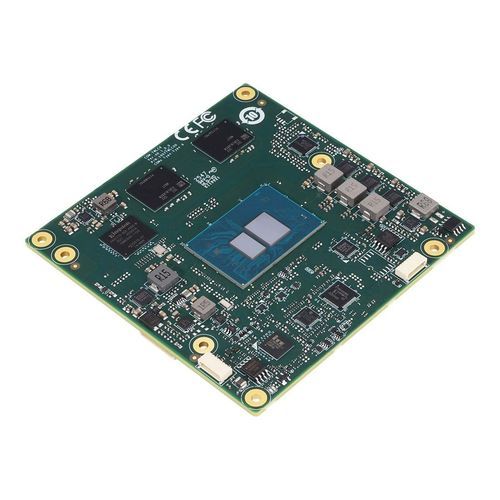

COM Express computer-on-module COM-ASLC6 Rev.B

COM Express CompactIntel® AtomUSB 3.2

Overview
COM-ASLC6 Rev.B — COM Express Type 6 compact module featuring Intel Atom® X Series processors. Designed for compact COM Express Type 6 applications with a 95 mm × 95 mm footprint.

Key features

• Intel Atom® X Series CPU, max TDP 15 W
• Onboard LPDDR5 memory, up to 16 GB
• Intel® Ethernet Controller I226 × 1
• SATA 6 Gb/s × 1
• USB 2.0 × 8; USB 3.2 Gen 2 × 2
• PCIe: PCIe [x2] × 1 + PCIe [x2] × 1 + PCIe [x1] × 2 (supports up to 4 PCIe devices)
• COM Express Type 6, Compact form factor, 95 mm × 95 mm

Product model
COM-ASLC6 Rev.B

Specifications

• Processor: Intel Atom® X Series (max TDP 15 W)
• Memory: Onboard LPDDR5, up to 16 GB
• Ethernet: Intel® Ethernet Controller I226 × 1
• Storage: SATA 6 Gb/s × 1
• USB: USB 2.0 × 8; USB 3.2 Gen 2 × 2
• PCIe: PCIe [x2] × 1, PCIe [x2] × 1, PCIe [x1] × 2 (supports up to 4 PCIe devices)
• Form factor: COM Express Type 6, Compact 95 mm × 95 mm
