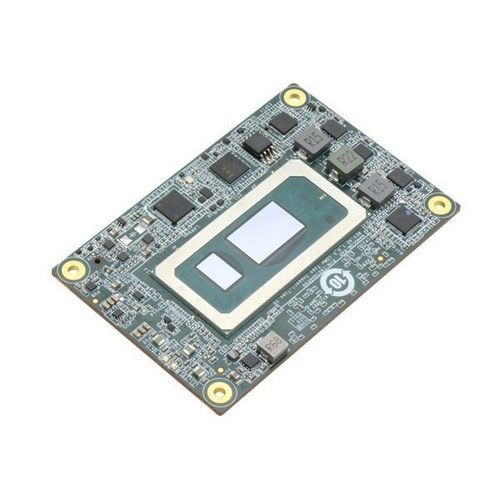

COM Express computer-on-module NANOCOM-RAP series

13th Generation Intel® Core™Intel® Core™ i5-1335UEIntel® Processor U300E

COM Express Type 10 with 13th Generation Intel® Core™ U-series Processors - Onboard LPDDR5, up to 16GB - Onboard NVMe, up to 128GB (Optional) - eDP x 1, DDI x 1 - USB 2.0 x 8, USB 3.2 Gen 2 x 2 - PCIe [x1] x 4 - Intel® I226-IT GbE x 1 - COM Express Type 10, 3.31” x 2.17” (84mm x 55mm) Optional Accessories - Part Number: ECB-920A-A11-0001 Description: COMe Type 6/10.Carrier Board.ATX.2.5GbE.8USB.2COM.4SATA.PCIe.AT/ATX. Rev. A1.1 Qty: 1 - Part Number: NANOCOM-RAP-HSP01 Description: Heat Spreader. 84 x 55 x 11 mm. Black Qty: 1 - Part Number: NANOCOM-RAP-FAN01 Description: Cooler.84 x 55 x 18 mm.4pin. Qty: 1 Technical Specifications / Features - Form Factor: COM Express Type 10 - Processor: 13th Generation Intel® Core™ U-series - Memory: Onboard LPDDR5, up to 16GB - Storage: Onboard NVMe, up to 128GB (Optional) - Display: eDP x 1, DDI x 1 - USB: USB 2.0 x 8, USB 3.2 Gen 2 x 2 - Expansion: PCIe [x1] x 4 - Ethernet: Intel® I226-IT GbE x 1 - Dimensions: 3.31” x 2.17” (84mm x 55mm)
