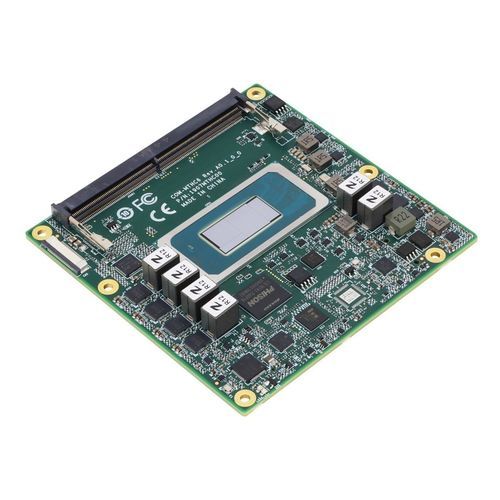

COM Express computer-on-module COM-ARHC6 series

Intel® Core™ UltraHDMIVGA

DDR5 6400MHz Dual-Channel SODIMM x 2, up to 96GB - VGA Switch DDI x 1, LVDS colay eDP x 1, DDI x 2 - USB 2.0 x 8, USB 3.2 Gen 2 x 4 - PCIe [x1] x 4, PCIe [x4] x 1, PEG [x8] + [x4] + [x4] - Intel® Ethernet Controller I226, 2.5GbE x 1 - 9V ~ 16V Power Input - COM Express Type 6, 3.75” x 3.75” (95mm x 95mm) Part Number - COM-MTHC6-FAN01: Cooler. 95 x 95 x 50mm. 4pin - ECB-920A-A11-0001: COMe Type 6/10. Carrier Board. ATX. 2.5GbE. 8USB. 2COM. 4SATA. PCIe. AT/ATX. Rev.A1.1 - COM-MTHC6-HSP01: Heatspreader. 95 x 95 x 11mm. Black Key Features / Technical Specifications: - Processor: Intel® Core™ Ultra 200H Series - Memory: DDR5 6400MHz, Dual-Channel SODIMM x 2, up to 96GB - Graphics: VGA Switch DDI x 1, LVDS colay eDP x 1, DDI x 2 - USB Ports: USB 2.0 x 8, USB 3.2 Gen 2 x 4 - Expansion: PCIe [x1] x 4, PCIe [x4] x 1, PEG [x8] + [x4] + [x4] - Ethernet: Intel® Ethernet Controller I226, 2.5GbE x 1 - Power Input: 9V ~ 16V - Form Factor: COM Express Type 6, 3.75” x 3.75” (95mm x 95mm)
