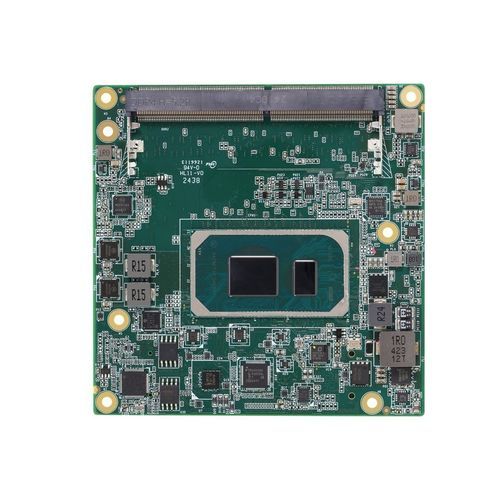

COM Express computer-on-module COM-TGUC6 Rev.C

1th Gen Intel® Tiger Lake-UP3 i3-1115G4EIntel® Core™ i7-1185G7EIntel Core i7-1185GRE

COM Express Type 6 Compact Size with 11th Gen Intel® Core™/Celeron® Processors - DDR4 3200MHz SODIMM x 2, up to 64GB - VGA x 1, LVDS x 1, DDI x 3 - USB 2.0 x 8, USB 3.2 Gen2 x 4 - PCIe [x1] x 5, PEG [x4] x1 - Intel® Ethernet Controller I226 2.5GbE x 1 - COM Express Type 6, 3.74" x 3.74" (95mm x 95mm) Optional Accessories - Part Number: ECB-920A-A11-0001, Description: COMe Type 6/10. Carrier Board. ATX. 2.5GbE. 8USB. 2COM. 4SATA. PCIe. AT/ATX. Rev.A1.1 - Part Number: COM-TGUC6-FAN01, Description: Cooler. 95mm x 95mm x 24mm. 4pin - Part Number: COM-TGUC6-HSP02, Description: Heat Spreader. 95mm x 95mm x 11mm. Black. for COM-TGUC6 Rev.C Technical Specifications / Features - Form Factor: COM Express Type 6 Compact Size (95mm x 95mm) - Processor: 11th Gen Intel® Core™/Celeron® - Memory: DDR4 3200MHz SODIMM x 2, up to 64GB - Graphics: VGA x 1, LVDS x 1, DDI x 3 - USB: USB 2.0 x 8, USB 3.2 Gen2 x 4 - Expansion: PCIe [x1] x 5, PEG [x4] x1 - Ethernet: Intel® Ethernet Controller I226 2.5GbE x 1
