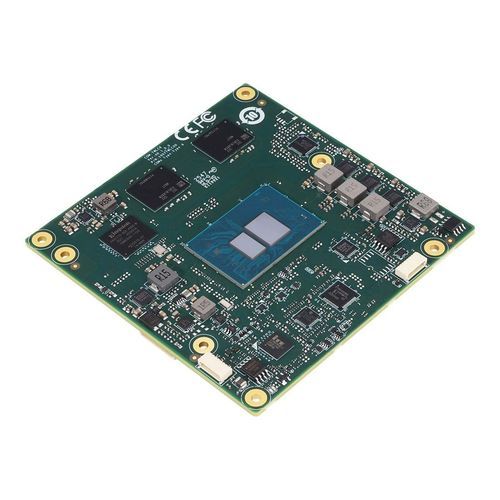

COM Express Compact computer-on-module COM-TWLC6 Rev.B

COM ExpressIntel® Core™Intel® Processor N-series

Overview
COM-TWLC6 Rev.B is a COM Express Type 6 Compact size module designed for embedded systems and industrial applications, supporting Intel Atom® N-series and Intel Core™ processors with a maximum TDP of 15W.

Key features

• Intel Atom® N-series / Intel Core™ CPU, max TDP 15W
• Onboard LPDDR5 memory, up to 16GB
• Intel® Ethernet Controller I226 ×1
• SATA 6Gb/s ×1
• USB 2.0 ×8, USB 3.2 Gen 2 ×2
• PCIe: PCIe [x2] ×1 + PCIe [x2] ×1 + PCIe [x1] ×2 (supports up to 4 PCIe devices)
• COM Express Type 6, Compact form factor 95 mm × 95 mm

Notes
Module is supplied in the COM Express Type 6 compact form factor. Product availability is indicated via the manufacturer's eShop; estimated dispatch time is shown on the product page.

Technical specifications

• Model: COM-TWLC6 Rev.B
• Processor: Intel Atom® N-series / Intel Core™ processors (max TDP 15W)
• Memory: Onboard LPDDR5, up to 16GB
• Ethernet: Intel® Ethernet Controller I226 ×1
• Storage: SATA 6Gb/s ×1
• USB: USB 2.0 ×8, USB 3.2 Gen 2 ×2
• PCI Express: PCIe x2 (×1) + PCIe x2 (×1) + PCIe x1 (×2), supports up to 4 PCIe devices
• Form factor: COM Express Type 6, Compact, 95 mm × 95 mm
