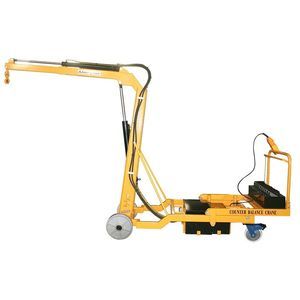

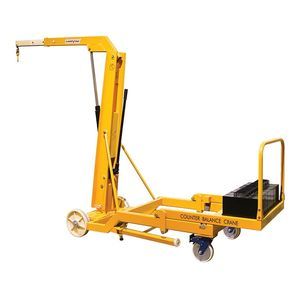

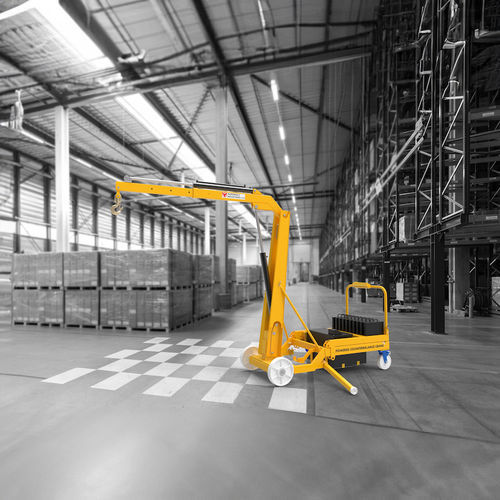

Shop crane with counterweight APCCL

foldingelectricmobile

General
The Aardwolf APCCL powered counterbalance crane with lateral movement is a battery-driven hydraulic floor crane designed for lifting and carrying loads in confined or paved-site conditions. The telescopic boom is raised by a 12V battery-powered hydraulic pump and provides adjustable reach while the integral counterweight removes the need for front supports, improving manoeuvrability.

Features

• Extra hydraulic cylinder for lateral movement of the front axle for precise positioning
• Hydraulically lifted, telescoping boom for variable reach
• Integral counterweight design — no front legs required
• Folds down for transport and storage
• High-capacity nylon front wheels for movement on flat paved surfaces

Specifications

• Working load limit (WLL): 540 kg — 1190 lb
• Extended dimensions: Length 1700 mm; Height 2760 mm — 66.9"; 108.6"
• Net weight: 830 kg — 1830 lb
• Packaging dimensions: L 1860 x W 970 x H 1180 mm — 73.2" x 38.2" x 46.5"

Battery information

• Power supply: 12V 150A battery
• Charger: 12V 20A (recommended)
• Charging time: ≈ 7.5 hours
• Continuous working time (non-stop): ≈ 2.1 hours
• Warranty: 6 months

Motor / Hydraulic

• Motor: 12V, 1.6 kW, 2500 rpm
• Hydraulic pump: 1.6 cc/rev
• Hydraulic tank capacity: 8 L

Model / Technical details

• Model / Code: APCCL
• Manufacturer: Aardwolf
• Design: counterbalance floor crane with lateral movement via extra hydraulic cylinder
• Suitable use: on paved or solid flat surfaces for installation, workshop handling, confined-site lifting
