Pillar jib crane AJCOCM

free-standing270°overbraced

General

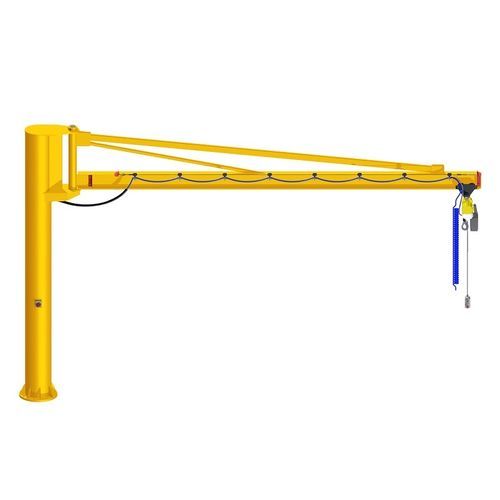

The Aardwolf Over Braced Jib Crane (column-mounted, model AJCOCM) provides economical 270° hook coverage with manual rotation. The over-braced, free-standing jib is designed for locations where overhead cranes are impractical, enabling unrestricted placement of machinery and equipment. It can be combined with a vacuum lifter and an electric hoist to meet application-specific handling requirements.

Features

• Sealed roller-bearing pivot for long service life
• Over-braced, free-standing design protects the runway from contamination
• 270° manual rotation for wide floor coverage
• Easy-moving hoist trolley for smooth load travel
• Rubber end stops

Specifications

• Manufacturer: Aardwolf
• Product code: AJCOCM
• Maximum span: 7000 mm (275.6")
• Working load limit (SWL): 1000 kg (2204 lb)
• Rotation: 270° manual
• Pivot: sealed roller-bearing
• Power supply (for compatible hoist): 220 V, 1 phase, 50–60 Hz
• Can be combined with vacuum lifters and electric hoists to suit specific tasks
