Pillar jib crane AJCOWM

wall-mounted180°electric

General

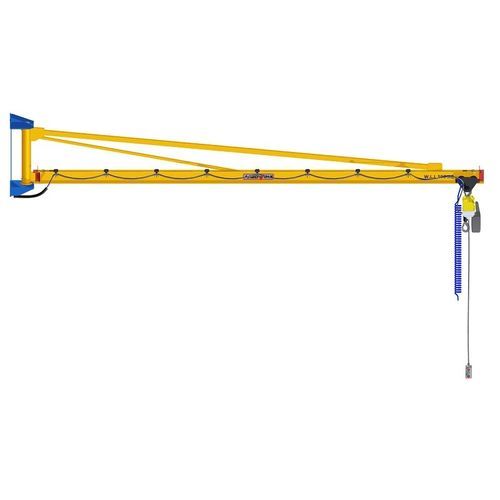

The over-braced wall-mounted jib crane provides economical hook coverage with 180° manual rotation. It is fixed to a substantial structural steel column at the required height and features a steel I-beam boom with a yellow enamel finish. The crane can be supplied with an electric hoist and combined with a vacuum lifter to suit specific lifting tasks.

Features

• Sealed roller-bearing pivot
• Steel I-beam boom
• 180° manual rotation
• Easy-moving hoist trolley
• Rubber end stops
• High-visibility yellow enamel finish

Specifications

• Model: AJCOWM
• Brand: Aardwolf
• Maximum span: 6000 mm / 236.2 in
• Working load limit (WLL): 500 kg / 1102 lb
• Pin height: 4000 mm / 157 in
• Power supply (for electric hoist): 220 V, 1 phase, 50–60 Hz
• Rotation: 180° manual (other ranges available on request)

Compatibility and options

• Compatible with Aardwolf vacuum lifters
• Can be equipped with electric hoists and travelling trolleys

Construction and use

• Fabricated from structural steel for industrial environments
• Sealed bearings for smooth rotation and reduced maintenance
• Easy installation on substantial steel columns
