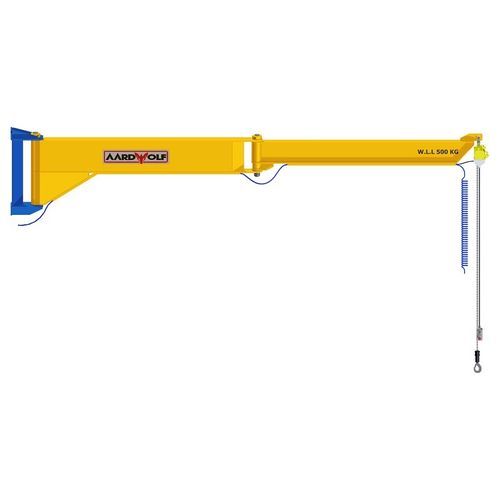

Wall-mounted jib crane AJCAWM

360°270°electric

Overview
Designed for operation in confined spaces and around obstructions, the wall-mounted articulated jib crane provides a compact and economical lifting solution. The jib can be fitted with a vacuum lifter and an electric hoist to meet specific application requirements.

Features

• Spherical sealed roller-bearing pivot
• Steel wall-mounted jib construction
• Rotation option: 270° or 360° for a large working envelope

Specifications
Metric — Imperial
Maximum span: 5000 mm — 197 in
Working load limit (WLL): 500 kg — 1102 lb
Power supply: 220V 1-phase 50-60Hz — -

Technical details

• Brand: Aardwolf
• Product code: AJCAWM
• Maximum span: 5000 mm (197 in)
• Working load limit: 500 kg (1102 lb)
• Rotation: 270° or 360°
• Pivot: spherical sealed roller-bearing
• Compatibility: compatible with vacuum lifter and electric hoist
• Power: 220V 1-phase 50-60Hz
