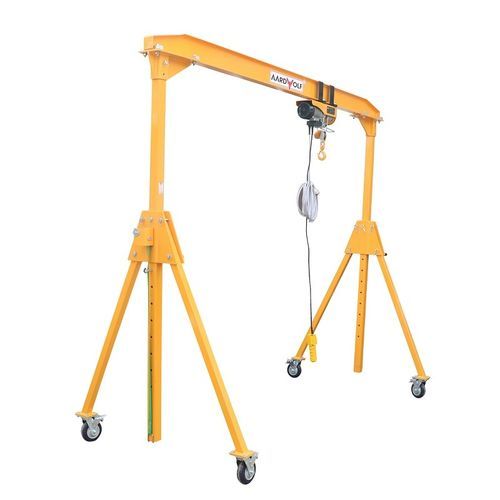

Mobile gantry crane AGC-1000

for workshopsfor civil worksaluminium

Overview
Made of aluminum, the Aardwolf portable gantry crane is lightweight, portable and stable under load. No permanent installation is required. Designed for use on construction sites and in workshops or factories, the crane offers an economical, adjustable lifting solution with a maximum span of 3100 mm and a working load limit of 1000 kg. Height adjustment is possible using the supplied hand-wind handles or a battery-powered drill.

Features

• Portable: Designed to access different areas of a plant or site and to be relocated without permanent fixing.
• Adjustable: Height adjustable up to 3.1 m and span up to 3100 mm to adapt to varying lifting tasks.
• Quick assembly: Fast to assemble and disassemble for transport or workflow changes.

Note
The price does not include an electric chain hoist with manual trolley.

Specifications
Metric | Imperial
Maximum span: 3100 mm | 122"
Working load limit (WLL): 1000 kg | 2204 lb
Net weight: 154 kg | 339 lb
Packaging dimensions: L.3915 x W.580 x H.620 mm | 154" x 22.8" x 24.4"

Technical specifications

• Material: Aluminum
• Maximum span: 3100 mm (122")
• Working load limit (WLL): 1000 kg (2204 lb)
• Adjustable height: up to 3.1 m
• Net weight: 154 kg (339 lb)
• Packaging dimensions: L.3915 x W.580 x H.620 mm (154" x 22.8" x 24.4")
• Height adjustment methods: hand-wind handles or battery-powered drill
• Portable, quick assembly/disassembly, no permanent installation required
• Typical use: construction sites, workshops and factories
