Hydraulic shop crane AMCC

with counterweightfoldingcompact

General

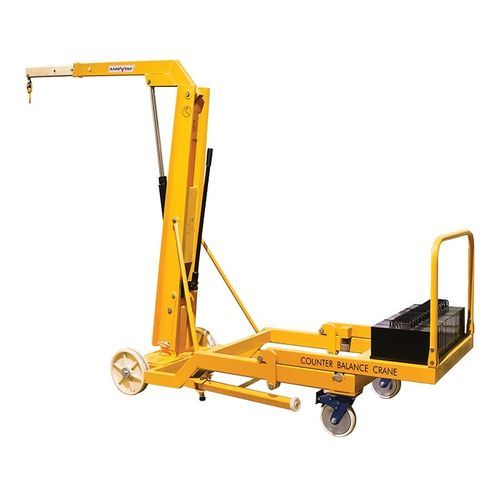

The Aardwolf Manual Counterbalance Crane (model AMCC) features an adjustable boom raised by a hydraulic hand pump. The integral counterweight design removes the need for front support legs, improving manoeuvrability and enabling operation in confined or hard-to-reach areas. Front wheels are high-capacity, wear-resistant nylon, allowing picking and carrying of loads and push-transport on flat, paved surfaces.

Applications

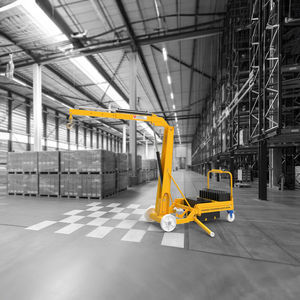

Suitable for lifting, transporting and positioning materials on solid paved surfaces in industrial environments. Designed for operations where access is limited and compact handling is required.

Features

• Integral counterweight (no front legs required)
• Hydraulic hand pump for boom raising
• Adjustable boom for varied lift positions
• Folds down for compact transport and storage
• High-capacity nylon front wheels for movement on flat, paved surfaces

Specifications

• Model: AMCC
• Commercial name: Manual Counterbalance Crane
• Extended length: 1700 mm (66.9")
• Extended height: 2760 mm (108.6")
• Working load limit (WLL): 540 kg (1190 lb)
• Net weight: 550 kg (1212 lb)
• Gross weight: 632 kg (1393 lb)
• Packaging dimensions: 2020 x 950 x 1020 mm (79.5" x 37.4" x 40.2")
• Recommended surface: flat, solid, paved
