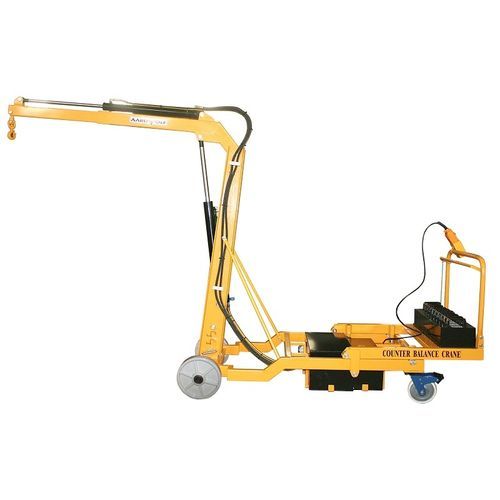

Mobile mini crane APCC

telescopicliftingelectric

General
The Aardwolf counterbalanced floor crane APCC features an adjustable telescopic boom for extended reach and operational versatility. The boom is raised by a 12V battery-powered hydraulic pump. The integral counterweight design removes the need for front legs, improving manoeuvrability and enabling access to confined or hard-to-reach areas.

Equipped with wear‑resistant, high‑capacity nylon front wheels, the crane can pick and carry loads and be manually pushed on flat paved surfaces to transport materials.

Features

• Integral counterweight — no front legs required.
• Hydraulically lifted telescopic boom (12V battery pump) for easy extension and control.
• Foldable design for compact transport and storage.

Specifications
Extended: Length 1700 mm; Height 2760 mm.
Maximum span: 6000 mm (236.2").
Working load limit (WLL): 540 kg (1190 lb).
Net weight: 756 kg; Gross weight: 848 kg.
Packaging dimensions: L2020 x W950 x H1320 mm (79.5" x 37.4" x 52").
Power supply: 220V single‑phase 50‑60Hz.

Technical details

• Product code: APCC
• Brand: Aardwolf
• Boom: adjustable telescopic with hydraulic lift (12V battery‑powered pump)
• Counterbalance: integral
• Front wheels: high‑capacity nylon, wear‑resistant
• Foldable for transport and storage
• Maximum reach: 1700 mm; Maximum span: 6000 mm
• Working load limit: 540 kg
• Net/Gross weight: 756 kg / 848 kg
• Packaging and power supply as above
