Pillar jib crane AJCPIL

floor-mounted360°electric

General

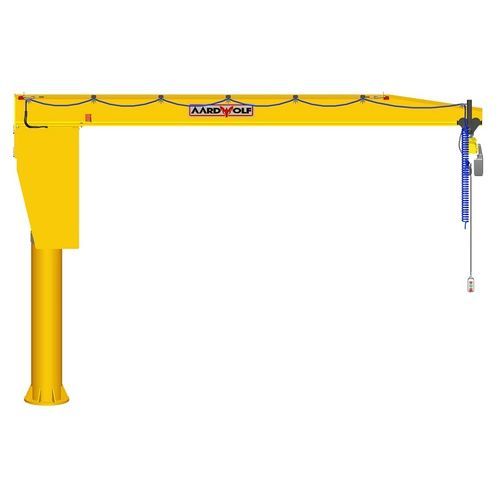

Heavy-duty pillar-mounted, floor-supported jib crane offering full 360° rotation. Boom fabricated from a steel I‑beam with a machined lower roller carriage housed in the jib head section and heavy steel side plates. The lower roller carriage is fitted on adjustable tension bolts for field alignment. Support column is steel pipe with heavy base plate and reinforcing gussets. Can be supplied to integrate a vacuum lifter and an electric hoist to meet specific handling requirements.

Features

• 360° continuous rotation for maximum coverage
• Steel I‑beam boom for high bending resistance
• Machined lower roller carriage with heavy side plates for smooth trolley movement
• Adjustable tension-bolt mounting for on-site alignment
• Rubber end stops for safe end-of-travel damping
• Can be combined with vacuum lifters and electric hoists

Specifications
Maximum span — 7000 mm — 275 5/8"
Working load limit (WLL) — 1000 kg — 2204.6 lbs
Net weight — 1660 kg — 3660 lbs
Gross weight — 1700 kg — 3748 lbs
Size – Mast — L.4000 × W.1020 × H.1140 mm — L.157 1/2" × W.40 1/8" × H.44 7/8"
Size – Head — L.850 × W.600 × H.1880 mm — L.33 1/2" × W.23 5/8" × H.74"
Size – Boom — L.7400 × W.420 × H.650 mm — L.291 1/4" × W.16 1/2" × H.25 5/8"

Technical specifications

• Maximum span: 7000 mm
• Working load limit (WLL): 1000 kg
• Net weight: 1660 kg
• Gross weight: 1700 kg
• Mast dimensions: L.4000 × W.1020 × H.1140 mm
• Head dimensions: L.850 × W.600 × H.1880 mm
• Boom dimensions: L.7400 × W.420 × H.650 mm
• Boom fabricated from steel I‑beam
• Machined lower roller carriage with heavy steel side plates
• Lower roller carriage mounted on adjustable tension bolts for field adjustments
• Support column: steel pipe with heavy base plate and reinforcing gussets
• Compatible with vacuum lifter and electric hoist integration
