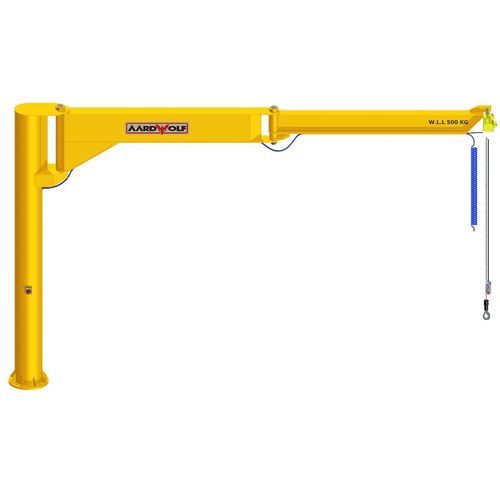

Jib crane on an articulated column CMA01

360°270°electric

Overview of Column-Mounted Articulated Jib Crane
Designed for operations in constrained spaces and to work around obstructions, the column-mounted articulated jib crane provides a simple, economical material handling solution. It interfaces with vacuum lifters and electric hoists to support a range of lifting tasks.

Key Features

• Spherical sealed roller bearing pivot for smooth, low-maintenance rotation
• Available rotation angles: 270° or 360° to maximize coverage
• Compact column-mounted installation for limited floor space
• Rated working load limit (WLL): 500 kg; maximum span: 7000 mm

Integration with Gantry or Lifting Systems
The jib can be combined with portable gantry cranes, vacuum lifters and electric hoists to create flexible lifting configurations for positioning, handling and assembly operations.

Specifications
Metric | Imperial
Maximum span: 7000 mm | 275.6 in
Working load limit: 500 kg | 1102 lb
Power supply: 220V 1-phase 50-60Hz | -

Technical specifications

• Product code: CMA01
• Maximum span: 7000 mm (275.6 in)
• Working load limit (WLL): 500 kg (1102 lb)
• Power supply: 220V 1-phase 50-60Hz
• Rotation options: 270° or 360°
• Pivot: spherical sealed roller bearing
• Column-mounted design for installation in constrained areas
