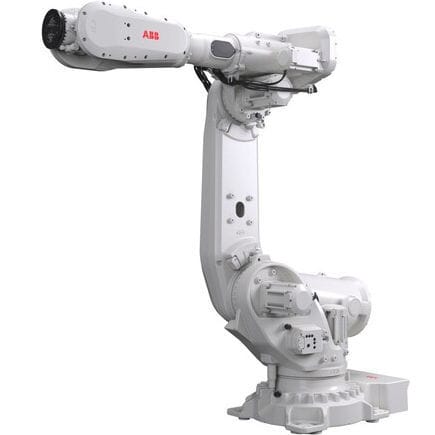

Articulated robot IRB 6730

6-axisfor weldingfor assembly

Five variants with payloads from 190 to 270 kg and reaches from 2.7 to 3.1 m Position repeatability from 0.04 to 0.07 mm; path repeatability from 0.08 to 0.10 mm Suitable for machine tending, press automation, and structural assembly LeanID DressPack options for simplified routing and reduced cable wear IP67 protection and optional Foundry Plus for harsh industrial environments High wrist torque capacity up to 1413 Nm for large tools and heavy components Up to 20% energy efficiency improvement over previous generation robots Maximum Payload (kg) 270 Maximum Reach (m) 3.1 Maximum Position Repeatability (mm) 0.04 Applications Joining / Sealing, Spot Welding, Laser Welding, Assembly, Machine Tending, Material Handling, Dispensing Strength and Precision for High-Load Tasks in Harsh Environments The IRB 6730 is a high-payload, 6-axis industrial robot designed for robust material handling and press automation. With five model variants supporting payloads from 190 to 270 kg and reach options from 2.7 to 3.1 meters, it delivers strength, precision, and flexibility for complex industrial applications. The robot’s rugged design includes IP67 protection and the option for Foundry Plus, allowing reliable operation in high-temperature or dusty conditions. LeanID variants are available to reduce wear and improve cable management. With wrist torque capacity up to 1413 Nm and repeatability down to 0.04 mm, the IRB 6730 is particularly well suited for automotive and EV production, forging, and heavy part manipulation where tight tolerances and long-term reliability are essential. Mounting Floor Environment Standard Industrial, Harsh, Foundry
