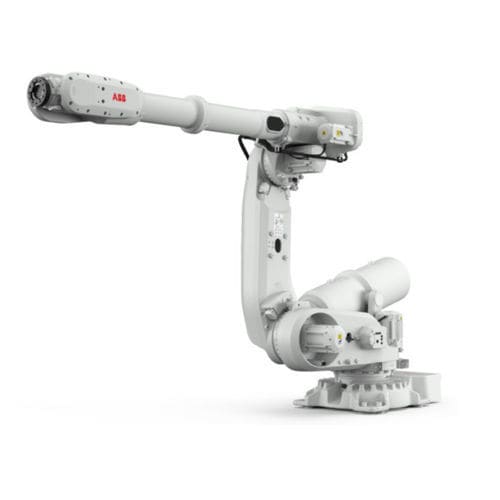

Articulated robot IRB 6730S

6-axisspot weldinginjection

Available in six variants, from 130 to 270 kg payload and 3.1 m to 4.0 m reach, including LeanID (LID) options for optimized cable management Up to 20% energy savings with OmniCore controller and regenerative power system Shelf-mounted design with extended downward reach for maximum space efficiency Precision motion control: path accuracy 0.9 mm, repeatability 0.06 mm Up to 700kg lighter than predecessor IRB 6650S for leaner cell and pedestal design LeanID DressPack for reliable, low-maintenance cable management Ideal for injection molding, die casting, material handling, and spot welding Maximum Payload (kg) 270 Maximum Reach (m) 4 Maximum Position Repeatability (mm) 0.06 Applications Spot Welding, Material Handling, Metal Casting, Moulding IRB 6730S Shelf-Mounted Industrial Robot — High-Reach, High-Performance Automation The ABB IRB 6730S is a next-generation shelf-mounted robot designed for demanding industrial automation tasks requiring precision, strength, and space efficiency. Available in six variants from 130 to 270 kg payload and 3.1 to 4.0 m reach, including LeanID (LID) configurations for optimized cable management, it delivers exceptional flexibility across multiple production environments. Powered by the OmniCore controller, the IRB 6730S achieves up to 20% energy savings while maintaining class-leading accuracy of 0.9 mm and repeatability of 0.06 mm. Ideal for injection molding, die casting, material handling, and spot welding, its modular design and reduced weight enable leaner cell layouts and higher robot density.
