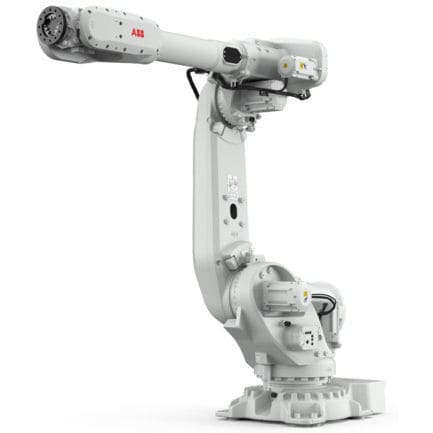

Articulated robot IRB 6760

6-axispalletizingarc welding

Available in two variants: IRB 6760-200/3.2 (3.2 m, 200 kg) and IRB 6760-150/3.5 (3.5 m, 150 kg) High payload industrial robot with wrist torque up to 1324 Nm and 50 kg extra load capacity on the upper arm Built-in precision: Position repeatability as low as 0.06 mm and path repeatability down to 0.10 mm (ISO 9283) Advanced safety with SafeMove2 and dual safety circuits for emergency stops Fast axis motion: Up to 285°/s on Axis 6 and 170°/s on Axis 4 for agile, heavy-duty handling Robust and reliable: IP67 protection, max 95% humidity, and -25°C to +55°C transportation temperature range Powered by OmniCore V250XT/V400XT controllers for flexible, energy-efficient operation (3.2 – 3.4 kW) Maximum Payload (kg) 200 Maximum Reach (m) 3.5 Maximum Position Repeatability (mm) 0.06 Applications Assembly, Material Handling, Packing, Press Automation Heavy-Duty 6-Axis Industrial Robot with Long Reach and High Torque The ABB IRB 6760 is a next-generation 6-axis industrial robot engineered for high-speed, heavy-duty applications across automotive, electronics, and general manufacturing. As ABB’s highest-performance press tending robot for mid-sized lines, it enables up to 15 strokes per minute or 900 parts per hour when combined with ABB’s carbon-fiber tooling boom — setting a new standard for throughput. Available in two variants (up to 200 kg payload, 3.5 m reach), it delivers exceptional torque, precision (0.06 mm repeatability), and a compact floor-mounted design for space-constrained layouts.
